| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,240 pcs
|
10240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

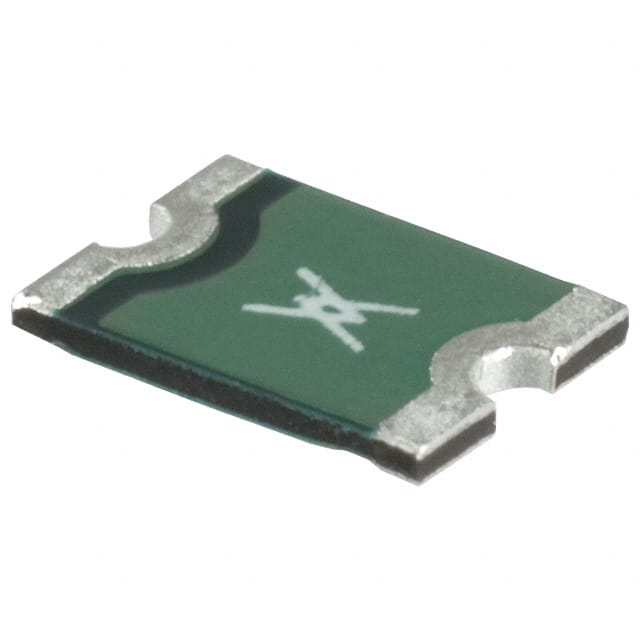

The Littelfuse MINISMDC010F-2 is a polymeric PTC resettable fuse designed for overcurrent protection in electronic circuits. It is rated for a maximum voltage of 60V and a hold current of 100mA, with an initial resistance of 12.7 ohms. The device trips in typically 5 seconds under fault conditions.
This fuse is housed in a compact 1812 (4532 metric) surface mount package with concave terminations, measuring 4.55mm in length, 3.24mm in width, and 0.89mm in thickness. It operates over a temperature range of -40°C to 85°C, making it suitable for a variety of environments.
Polymeric PTC fuses are ideal for protecting sensitive electronics by automatically resetting after fault conditions are cleared, reducing maintenance and replacement costs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.54 | $0.54 |
| 10+ | $0.48 | $0.48 |
| 50+ | $0.41 | $0.41 |
| 100+ | $0.36 | $0.36 |
| 200+ | $0.33 | $0.33 |
| 500+ | $0.27 | $0.27 |
| 1,000+ | $0.26 | $0.26 |
| 2,000+ | $0.23 | $0.23 |
| 4,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 100 mA.
The maximum voltage is 60V.
-40°C to 85°C.
1812 (4532 Metric), Concave surface mount package.
The typical trip time is 5 seconds.
The initial resistance is 12.7 ohms.
Polymeric construction.
