| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Dielectric Material | |
| Features | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

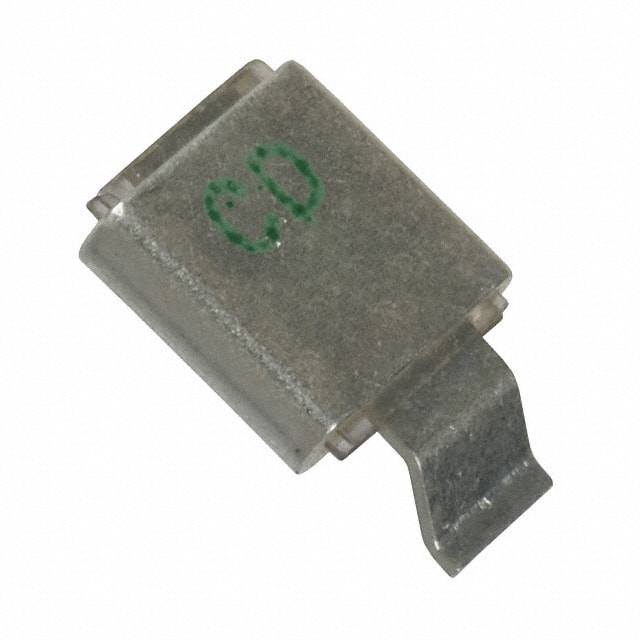

The MIN02-002DC500J-F is a surface mount mica capacitor from Cornell Dubilier Electronics, part of the MIN series. It offers a capacitance of 50 pF with ±5% tolerance and a voltage rating of 300 VDC. Designed for high-frequency RF applications, this capacitor features a mica dielectric and gull-wing termination for reliable surface mount assembly.
Key electrical characteristics include a temperature coefficient of ±100 ppm/°C, dielectric strength of 200% of rated voltage for 5 seconds, and insulation resistance of 1000 MΩ·µF minimum. The capacitor exhibits no aging effect, ensuring long-term stability.
The component is housed in a nonstandard SMD package measuring 5.54 mm length by 10.16 mm width. It is RoHS3 compliant and rated for MSL 1 (unlimited) moisture sensitivity. The operating temperature range spans -55°C to 200°C with no voltage derating required.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.61 | $6.61 |
| 10+ | $4.86 | $4.86 |
| 50+ | $4.17 | $4.17 |
| 200+ | $3.77 | $3.77 |
| 600+ | $3.56 | $3.56 |
| 1,000+ | $3.47 | $3.47 |
| 2,600+ | $3.35 | $3.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 50 pF with a tolerance of ±5%.
The voltage rating is 300 VDC.
The operating temperature range is -55°C to 200°C with no voltage derating.
Yes, it is RoHS3 compliant.
The package is nonstandard SMD with surface mount gull-wing terminals.
The temperature coefficient is ±100 ppm/°C.
No, the aging rate is specified as none.
