MIMXRT1011CAE4A

The i.MX RT1010 is a member of the i.MX RT real-time processor family based on the Arm® Cortex®-M7 core, which operates at speeds up to 500 MHz to provide high CPU performance and best real-time response. The MIMXRT1011CAE4A from NXP Semiconductors is a specific implementation within this family, featuring a 32-bit single-core processor running at 400MHz.

This microcontroller includes 128KB of on-chip RAM, which can be flexibly configured. It offers a wide range of connectivity interfaces including EBI/EMI, I²C, SAI, SPDIF, SPI, UART/USART, and USB2.0 OTG. The device supports up to 44 I/O pins and includes peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, and WDT.

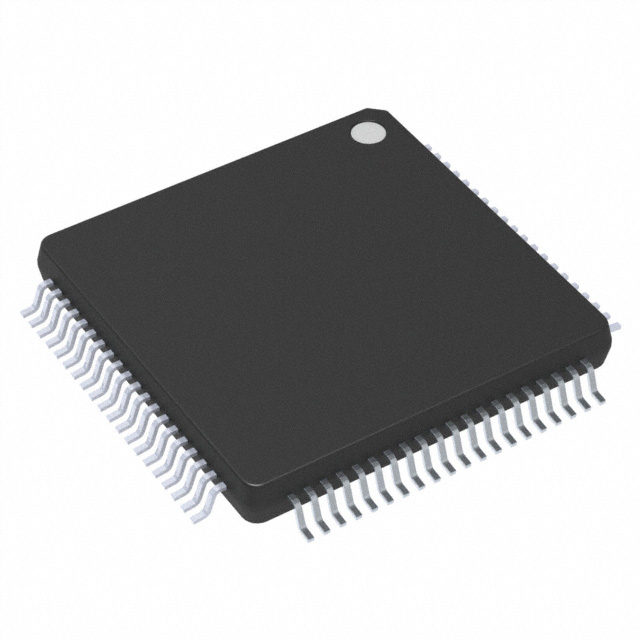

Designed for surface mount, the MIMXRT1011CAE4A comes in an 80-LQFP package, with the supplier package specified as 80-FQFP (12x12). It operates within a temperature range of -40°C to 105°C (TJ) and requires a voltage supply between 3.0V and 3.6V. The part also integrates analog-to-digital converters (15x12b) and supports external program memory.

Key features include its high-performance ARM® Cortex®-M7 core, 400MHz clock speed, and 128KB RAM. The extensive peripheral set and connectivity options make it suitable for various embedded applications requiring real-time processing capabilities.
