| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,298 pcs
|
13298 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,023 pcs
|
7023 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
4,235 pcs
|
4235 pcs | On Request | 1 | On Request | On Request | 1625+ | On Request | On Request | |
|
1,842 pcs
|
1842 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

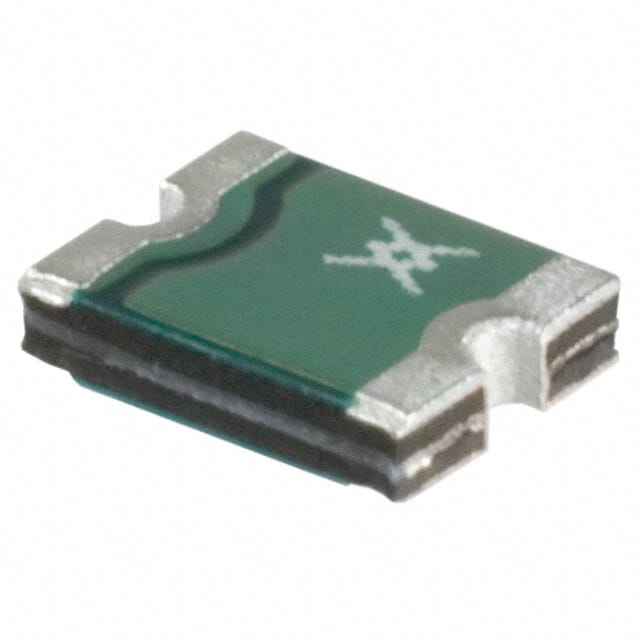

The Littelfuse MICROSMD005F-2 is a polymeric PTC resettable fuse designed for overcurrent protection in low-power circuits. It features a maximum voltage rating of 30V and a hold current of 50mA, with a maximum post-trip resistance of 50Ω. The device trips in 1.5 seconds under fault conditions, resetting automatically once power is removed and the fault clears.
This surface mount fuse is housed in a compact 1210 (3225 Metric) concave package, measuring 3.22mm x 2.58mm x 0.85mm. It operates over a temperature range of -40°C to 85°C, making it suitable for a variety of environments. The polymeric construction ensures fast response and robust performance in repetitive fault conditions.
Typical applications include overcurrent protection in USB ports, battery packs, and other portable electronics where resettable protection is required to prevent damage from short circuits or overload events.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
| 10+ | $0.46 | $0.46 |
| 50+ | $0.39 | $0.39 |
| 100+ | $0.36 | $0.36 |
| 200+ | $0.32 | $0.32 |
| 500+ | $0.30 | $0.30 |
| 1,000+ | $0.27 | $0.27 |
| 4,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current (maximum) is 50 mA.
The maximum voltage is 30V.
The time to trip is 1.5 seconds.
The package is 1210 (3225 Metric), Concave.
The maximum post-trip resistance (R1) is 50 Ω.
The operating temperature range is -40°C to 85°C.
Surface Mount.
