| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34,836 pcs
|
34836 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request | |
|
310 pcs
|
310 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

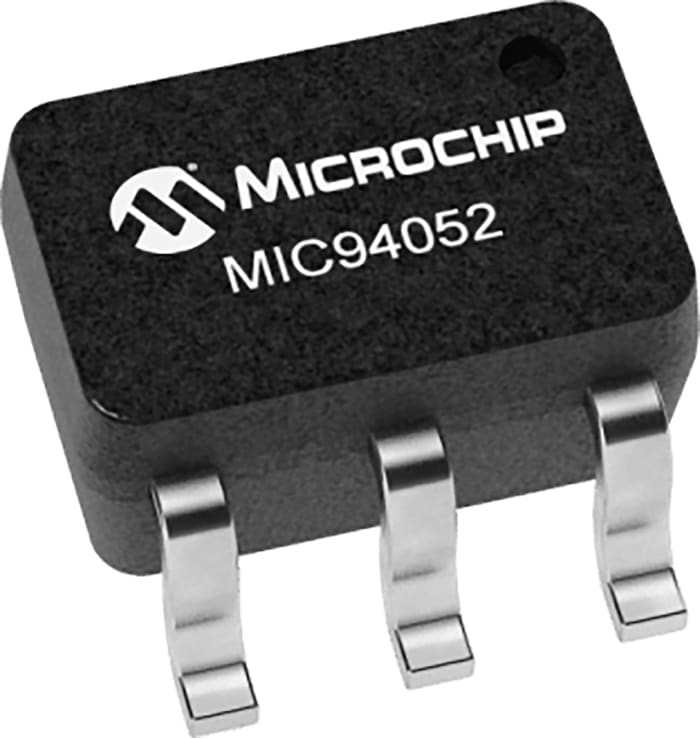

The MIC94052YC6-TR from Microchip Technology is a P-Channel MOSFET housed in a compact SC-70-6 package, making it suitable for space-critical applications. It features a low on-resistance of 84mΩ (max) at 100mA and 4.5V Vgs, with a typical on-resistance of 70mΩ at 4.5V. This device supports a continuous drain current of up to 2A.
Designed for high-side switching, the MIC94052YC6-TR operates with an input voltage range of 1.8V to 5.5V, making it ideal for Li-Ion battery-powered devices and other sub-5V load switch applications. The MOSFET has a drain-to-source voltage rating of 6V and a gate-to-source voltage rating of 6V. Its operating junction temperature range is -40°C to +150°C.
The surface-mount SC-70-6 package is designed for efficient heat dissipation, with a maximum power dissipation of 270mW at 25°C ambient temperature. The device is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous drain current is 2A at 25°C ambient temperature.
The maximum on-resistance is 84mOhm at 100mA and 4.5V gate-to-source voltage.
The input voltage range is 1.8V to 5.5V.
The package type is SC-70-6.
The operating temperature range is -40°C to 150°C.
