| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 1232 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| PSRR | |
| Quiescent Current |
The MIC5393-PPYMX-T5 from Microchip Technology (formerly Micrel) is a high-performance, ultra-low noise linear voltage regulator designed for sensitive analog and RF applications. It delivers a continuous output current of 300mA with an input voltage range of 2.3V to 5.5V.
Key electrical characteristics include an ultra-low output noise of 4.5µVRMS over a 10Hz to 100kHz bandwidth and excellent power supply rejection ratio (PSRR) of greater than 70dB at 1kHz. The device features a typical quiescent current of only 25µA, making it suitable for battery-powered devices. Output voltage accuracy is maintained within ±2%.

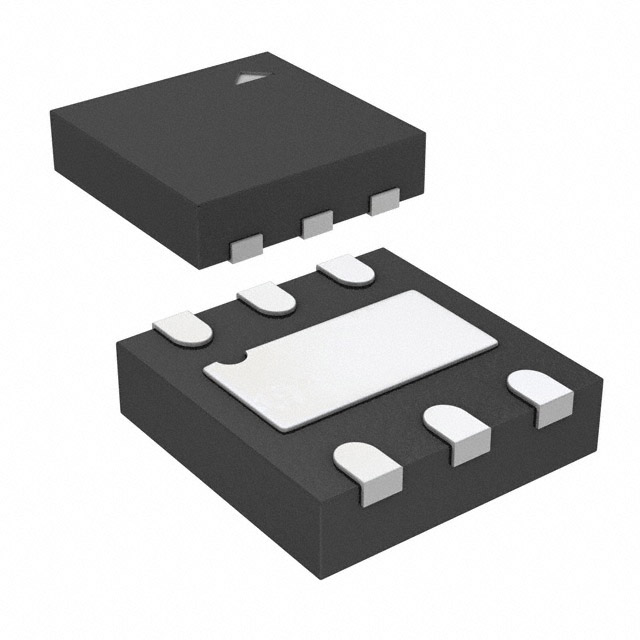

This regulator is housed in a compact 1.2mm x 1.6mm 6-pin µDFN package, ideal for space-constrained designs. It offers fast transient response, built-in thermal shutdown, and current limiting for robust operation. The operating temperature range is from -40°C to +125°C.
Applications include powering ADCs, DACs, RF transceivers, optical modules, wearables, and other noise-sensitive portable or automotive electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MIC5393-PPYMX-T5 provides a dual 3V output.
The maximum output current is 300mA.
The input voltage range is 2.3V to 5.5V.
The output voltage accuracy is ±2%.
The typical quiescent current is 25µA.
The output noise is 4.5µVRMS from 10Hz to 100kHz.
The operating temperature range is -40°C to +125°C.
