Mfr Part #:

MIC5393-MMYMX T5

The MIC5393-MMYMX T5 from Microchip Technology is a dual linear voltage regulator with 2.8V outputs. It provides 150mA of current per channel and includes protection features.

✓ Total Stock: 500 pcs

$ Price Range: $2.23

MIC5393-MMYMX T5 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	500 pcs On Request	500 pcs	On Request	1	On Request	On Request	1305	On Request	On Request

MIC5393-MMYMX T5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Micrel Inc.
Mounting Type	Surface Mount
Operating Temperature	-40°C / 125°C
Output Current	150mA
Output Voltage	2.8V
PSRR	60dB (1kHz)
Tape & Reel	Tape & Reel

View Similar Products (0)

MIC5393-MMYMX T5 Description

Short technical summary and product information.

The MIC5393-MMYMX T5 is a dual low-dropout (LDO) linear voltage regulator manufactured by Microchip Technology. It is designed to provide stable output voltages of 2.8V per channel, with each channel capable of supplying up to 150mA of current. The device operates with a maximum input voltage of 5.5V and features a low quiescent current of 45µA, making it suitable for power-sensitive applications.

Key electrical characteristics include a dropout voltage of 0.31V at 150mA and a Power Supply Rejection Ratio (PSRR) of 60dB at 1kHz. The regulator includes built-in over-current and over-temperature protection mechanisms to safeguard the device and the load during fault conditions. It also features an enable pin for power management.

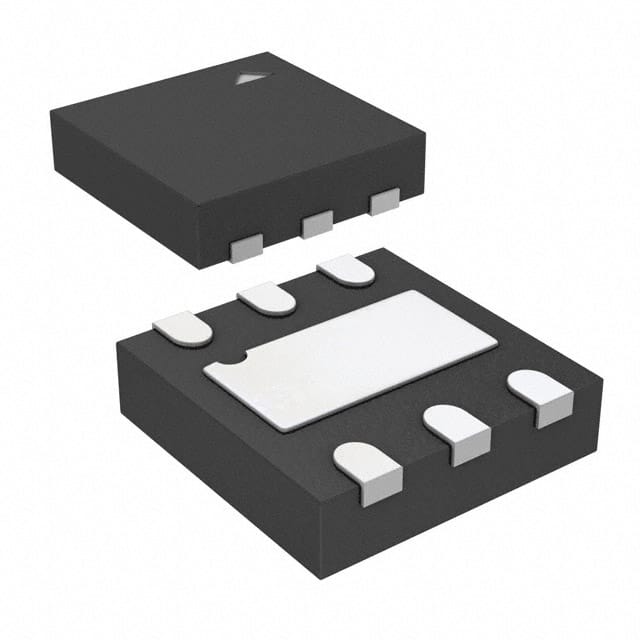

This LDO regulator is housed in a compact 6-XTDFN (1.2x1.2mm) package, designed for surface mounting. Its small footprint and robust protection features make it a versatile choice for various electronic designs where space and reliability are critical.

MIC5393-MMYMX T5 Quick Information

Product Type: Linear Voltage Regulator

Canonical Name: MIC5393-MMYMX T5 Dual 2.8V Output 150mA LDO Linear Voltage Regulator

Subcategory: Linear Voltage Regulator

MIC5393-MMYMX T5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MIC5393-MMYMX T5 Estimated Pricing

Qty	Low	High
1+	$2.23	$2.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

MIC5393-MMYMX T5 Features

Dual 2.8V output voltage.
150mA output current per channel.
Low 45µA quiescent current.
Over current and over temperature protection.
Compact 6-XTDFN surface mount package.

MIC5393-MMYMX T5 Applications

Ideal for battery-powered devices.
Suitable for portable electronics.
Used in power management circuits.
Applicable in space-constrained designs.

MIC5393-MMYMX T5 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage of the MIC5393-MMYMX T5?

The MIC5393-MMYMX T5 has a nominal output voltage of 2.8V per channel.

What is the maximum output current for each channel of the MIC5393-MMYMX T5?

Each channel of the MIC5393-MMYMX T5 can provide a maximum output current of 150mA.

What is the maximum input voltage for the MIC5393-MMYMX T5?

The maximum input voltage for the MIC5393-MMYMX T5 is 5.5V.

What is the quiescent current of the MIC5393-MMYMX T5?

The quiescent current (Iq) for the MIC5393-MMYMX T5 is typically 45µA.

What type of package is the MIC5393-MMYMX T5 in?

The MIC5393-MMYMX T5 is supplied in a 6-XTDFN package.

Does the MIC5393-MMYMX T5 have protection features?

Yes, the MIC5393-MMYMX T5 includes over current and over temperature protection.
