| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
443 pcs
|
443 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| PSRR |

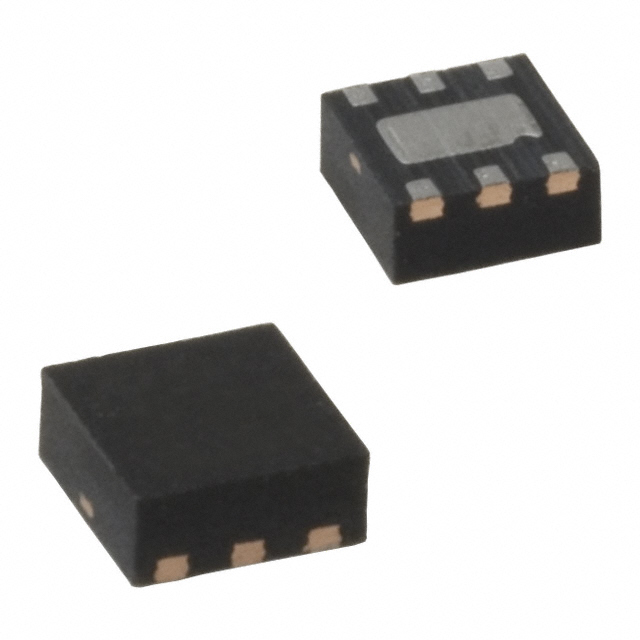

The MIC5309YMT-TR from Micrel/Microchip Technology is a versatile adjustable positive linear voltage regulator designed for various electronic applications. This component features an output voltage that can be adjusted between 0.8V and 2V, with a maximum output current capability of 300mA. The device accepts an input voltage of up to 5.5V, making it suitable for a wide range of power supply designs.
Operating within a temperature range of -40°C to 125°C, the MIC5309YMT-TR ensures reliable performance in demanding environments. It includes protection features such as over-current and over-temperature protection, enhancing system safety and longevity. The regulator is housed in a compact 6-TMLF® (1.6x1.6) package, designed for surface mount applications.
Key electrical characteristics include a low voltage dropout of 0.2V at 300mA and a Power Supply Rejection Ratio (PSRR) ranging from 70dB to 90dB at 1kHz. The regulator is available in tape and reel packaging, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be adjusted from 0.8V to 2V.
The maximum output current is 300mA.
The maximum input voltage is 5.5V.
The voltage dropout is 0.2V at 300mA.
The operating temperature range is -40°C to 125°C.
It is in a 6-TMLF® (1.6x1.6) package.
