The MIC5255-3.3YD5TR is a linear voltage regulator manufactured by Micrel Inc. (now part of Microchip Technology). This component is designed to provide a stable positive output voltage of 3.3V, capable of supplying up to 150mA of current. It features a low voltage drop of 0.25V at 150mA and operates within an input voltage range of up to 6V.
Key electrical characteristics include a quiescent current of 150µA and Power Supply Ripple Rejection (PSRR) ranging from 60dB to 50dB across a frequency of 10Hz to 10kHz. The device includes protection features such as over current, over temperature, and under voltage lockout (UVLO) for enhanced reliability. It also has an enable control function.

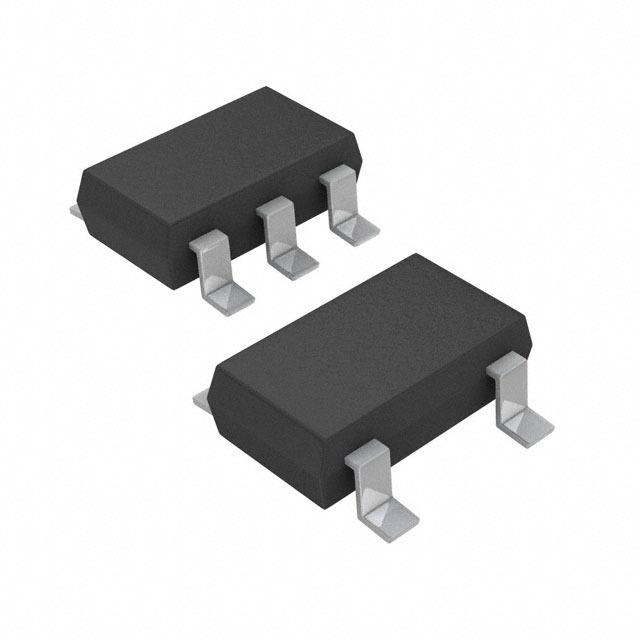

Packaged in a compact TSOT-23-5 surface-mount configuration, the MIC5255-3.3YD5TR is suitable for applications where space is limited. The operating temperature range is from -40°C to 125°C. This regulator is RoHS compliant and has a Moisture Sensitivity Level (MSL) of 1.
This part is ideal for power management in various electronic devices requiring a regulated 3.3V supply. Its features make it suitable for battery-powered applications and general-purpose voltage regulation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MIC5255-3.3YD5TR has a fixed output voltage of 3.3V.
The MIC5255-3.3YD5TR can supply a maximum output current of 150mA.
The maximum input voltage for the MIC5255-3.3YD5TR is 6V.
The MIC5255-3.3YD5TR is supplied in a TSOT-23-5 package.
The operating temperature range for the MIC5255-3.3YD5TR is -40°C to 125°C.
