Mfr Part #:

MIC5239-3.3BMM

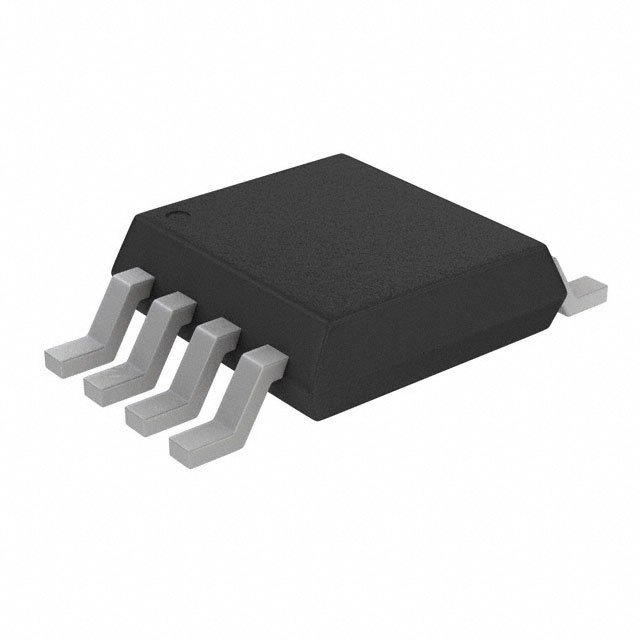

The Micrel MIC5239-3.3BMM is a 3.3V linear low-dropout regulator capable of delivering 500mA output current. It features a wide input voltage range up to 30V and ultra-low quiescent current.

✓ Total Stock: 100,000 pcs

$ Price Range: $0.28

MIC5239-3.3BMM Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	100,000 pcs On Request	100000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MIC5239-3.3BMM Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Micrel Inc.
Control Features	Logic Compatible Enable Input
Mounting Type	Surface Mount
Protection Features	Thermal Shutdown, Current Limit, Overvoltage Shutdown, Reverse-Leakage Protection, Reverse-Battery Protection
Supply Current	15mA

View Similar Products (0)

MIC5239-3.3BMM Description

Short technical summary and product information.

The MIC5239-3.3BMM from Micrel Inc. is a µCap low-dropout linear regulator designed for applications requiring low quiescent current and high output current capability. It can supply a continuous 500mA with a low dropout voltage of 350mV at 500mA.

This regulator operates from an input voltage range of 2.3V to 30V, making it suitable for systems with high voltage batteries. Key electrical features include ±1.0% initial output accuracy, ultra-low quiescent current of 23µA, and stability with ceramic or tantalum output capacitors requiring only a 3.3µF capacitor.

Protection features include overcurrent protection, thermal shutdown, overvoltage shutdown, reverse-leakage protection, and reverse-battery protection. The MIC5239-3.3BMM includes a logic-compatible enable input and an undervoltage error flag indicator.

Available in a thermally enhanced 8-MSOP package, this device is ideal for applications such as USB power supplies, keep-alive supplies in portable computers, logic supplies from high voltage batteries, and automotive electronics.

MIC5239-3.3BMM Quick Information

Product Type: Linear LDO Regulator

Series: MIC5239

Canonical Name: MIC5239-3.3BMM Low Quiescent Current LDO Regulator

Subcategory: Linear LDO

MIC5239-3.3BMM Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MIC5239-3.3BMM Estimated Pricing

Qty	Low	High
1+	$0.28	$0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

MIC5239-3.3BMM Features

Ultra-low quiescent current of 23µA.
Continuous 500mA output current capability.
Wide 2.3V to 30V input voltage range.
Low 350mV dropout voltage at 500mA.
Includes overcurrent and thermal protection.

MIC5239-3.3BMM Applications

Ideal for USB power supplies.
Suitable for battery-powered systems.
Used in portable computer logic supplies.
Applicable in automotive electronics.

MIC5239-3.3BMM FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage of the MIC5239-3.3BMM?

The MIC5239-3.3BMM has a fixed output voltage of 3.3V.

What is the maximum output current for the MIC5239-3.3BMM?

The MIC5239-3.3BMM can provide a continuous output current of 500mA.

What is the input voltage range of the MIC5239-3.3BMM?

The input voltage range for the MIC5239-3.3BMM is from 2.3V to 30V.

What is the dropout voltage of the MIC5239-3.3BMM at 500mA?

The dropout voltage is typically 350mV at 500mA output current.

What is the quiescent current of the MIC5239-3.3BMM?

The quiescent current is typically 23µA at 100µA output current.

What protection features are included in the MIC5239-3.3BMM?

The MIC5239-3.3BMM includes overcurrent, over temperature, overvoltage, reverse polarity, reverse leakage, and reverse battery protection.

What package type is the MIC5239-3.3BMM available in?

The MIC5239-3.3BMM is available in an 8-MSOP package.
