| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
177 pcs
|
177 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Quiescent Current | |
| Storage Temperature | |
| Tape & Reel |

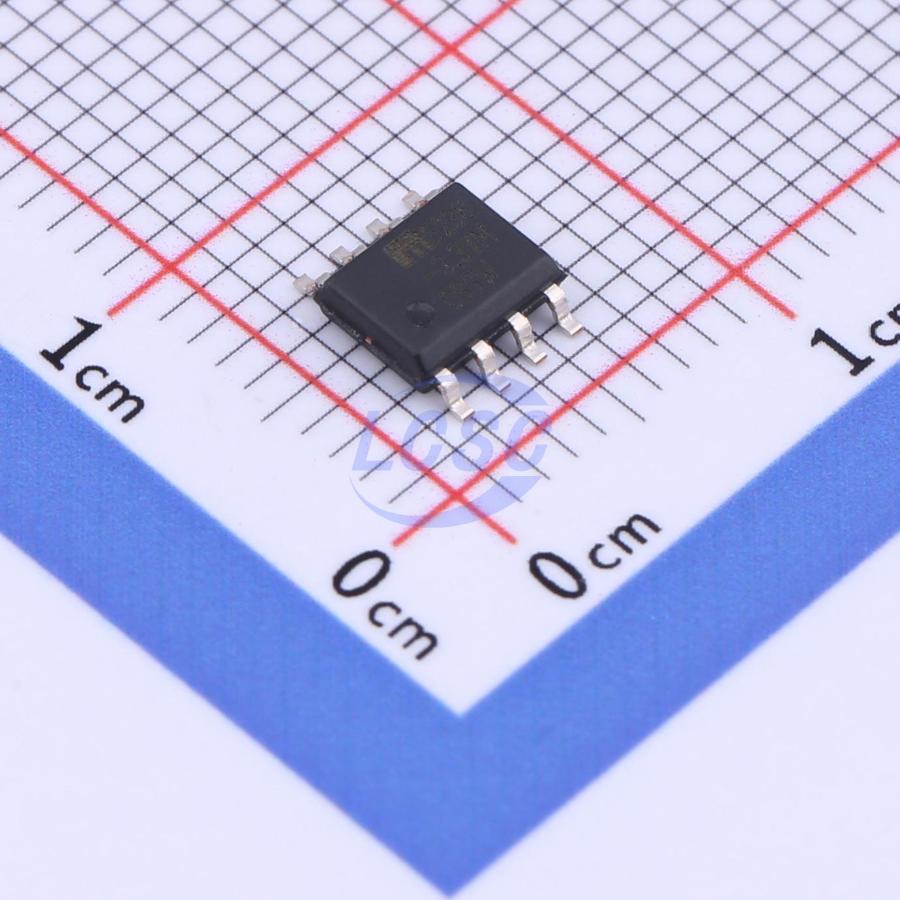

The MIC5236-3.3YM is a low quiescent current, µCap low-dropout regulator from Micrel Inc. It is designed for applications requiring efficient power regulation with minimal power consumption.
This LDO regulator boasts a wide input voltage range of 2.3V to 30V and can supply an output current of up to 150mA. Its low dropout voltage is 300mV at 150mA, making it suitable for systems with tight voltage headroom requirements. The quiescent current is exceptionally low at 20µA when the output current is 100µA.
Key features include ±1.0% initial output accuracy, stability with ceramic or tantalum output capacitors requiring only 1.0µF, and protection against overcurrent, thermal shutdown, and reverse battery conditions. It also includes a logic-compatible enable input and an undervoltage error flag indicator.
The MIC5236-3.3YM is available in thermally enhanced SOIC-8 and MSOP-8 packages, making it suitable for surface-mount applications. Its robust protection features and low power consumption make it ideal for keep-alive supplies in portable computers, logic supplies from high-voltage batteries, automotive electronics, and other battery-powered systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MIC5236-3.3YM has a fixed output voltage of 3.3V.
The MIC5236-3.3YM can supply a maximum output current of 150mA.
The input voltage range for the MIC5236-3.3YM is from 2.3V to 30V.
The quiescent current (IQ) of the MIC5236-3.3YM is typically 20µA at an output current (IO) of 100µA.
The dropout voltage for the MIC5236-3.3YM is typically 300mV at 150mA and 230mV at 50mA.
The MIC5236-3.3YM is available in 8-pin SOIC and 8-pin MSOP packages.
