| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72,320 pcs
|
72320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Protection Features | |
| SVHC Present | |
| Tape & Reel | |
| Voltage Dropout (Max) |
The MIC5233-2.5YM5TR from Micrel Inc. is a linear voltage regulator IC designed for positive fixed output applications. It provides a stable 2.5V output voltage with a maximum output current capability of 100mA. The device can accept an input voltage up to 36V and features a low dropout voltage of 0.45V at 100mA.
This regulator is suitable for various applications requiring a reliable and efficient voltage regulation. It includes protection features such as over current, over temperature, and reverse polarity protection, enhancing its robustness in demanding environments. The quiescent current is typically 30µA, making it suitable for power-sensitive applications.

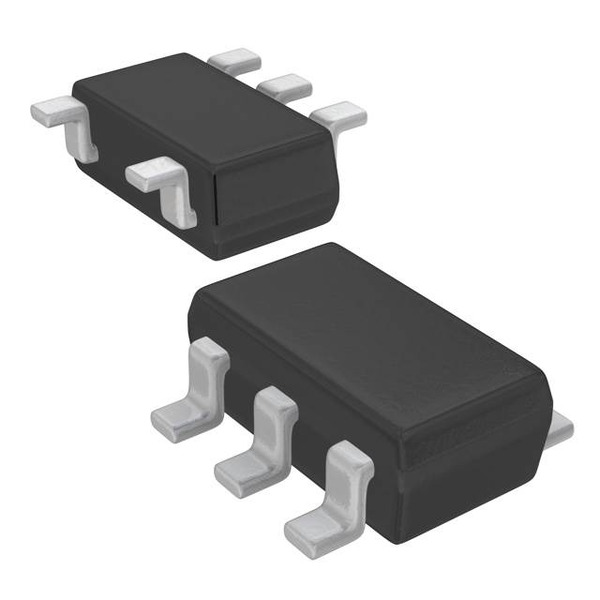

The MIC5233-2.5YM5TR is supplied in a compact SOT-23-5 surface-mount package, facilitating integration into space-constrained designs. It operates within a temperature range of -40°C to 125°C, ensuring performance across a wide spectrum of operating conditions. The device also features an enable control input for power management.
Key electrical characteristics include a maximum supply current of 2mA. The RoHS status is reported as Lead free / RoHS Compliant, and it is supplied in Tape & Reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MIC5233-2.5YM5TR has a fixed output voltage of 2.5V.
The maximum input voltage for the MIC5233-2.5YM5TR is 36V.
The MIC5233-2.5YM5TR can provide a maximum output current of 100mA.
The dropout voltage for the MIC5233-2.5YM5TR is 0.45V at 100mA.
The MIC5233-2.5YM5TR includes over current, over temperature, and reverse polarity protection.
The operating temperature range for the MIC5233-2.5YM5TR is -40°C to 125°C.
The MIC5233-2.5YM5TR is supplied in a SOT-23-5 package.
