| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
821,818 pcs
|
821818 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Mounting Style | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Package |

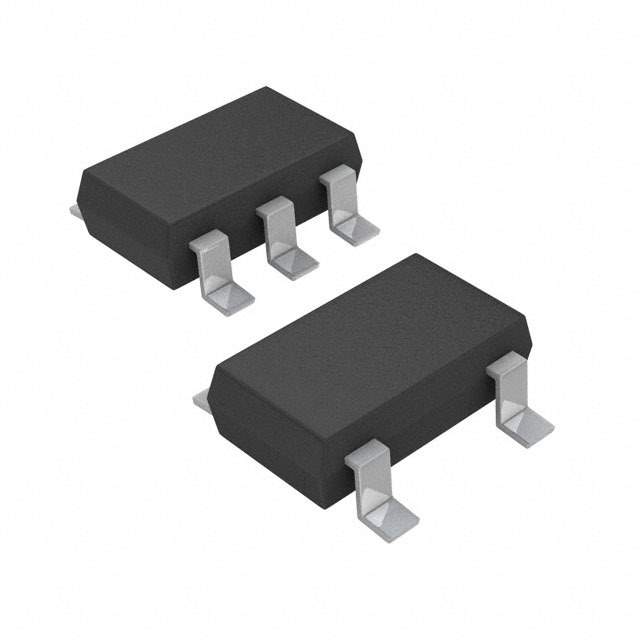

The MIC5232-2.5YD5 is a Low-Side Gate Driver IC manufactured by Micrel Inc. This component is designed for efficient power management applications.
Key electrical specifications include an operating supply voltage range of 4.5V to 18V, with a typical operating supply current of 4.5 mA. The device can deliver a peak output current of 1.5A (source and sink). It supports CMOS and TTL logic types with input threshold voltages of 0.8V (low) and 2.4V (high).
The gate driver features rise and fall times of 19ns (typical), with maximum rise and fall times of 30ns. The maximum propagation delay is 50ns. The output resistance is rated at 7 Ohms.
This IC is housed in an 8-VDFN Exposed Pad package, measuring 4.92mm in length, 5.99mm in width, and 0.84mm in height. It is designed for surface mounting (SMD/SMT) and operates within a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.5 V to 18 V.
The peak output current is 1.5 A.
The operating temperature range is -40°C to 85°C.
The MIC5232-2.5YD5 is available in an 8-VDFN Exposed Pad package.
The typical rise and fall time is 19 ns.
