The Micrel Inc. MIC5201-5.0YS is a linear voltage regulator designed for positive fixed output applications. It delivers a stable 5V output voltage with a maximum output current of 200mA. The device operates with a maximum input voltage of 26V and features a low voltage drop of 0.4V at 200mA.
Key electrical characteristics include a typical quiescent current of 400µA and a maximum supply current of 2mA. Protection features are integrated to safeguard the device and the system, including over current, over temperature, and reverse polarity protection.

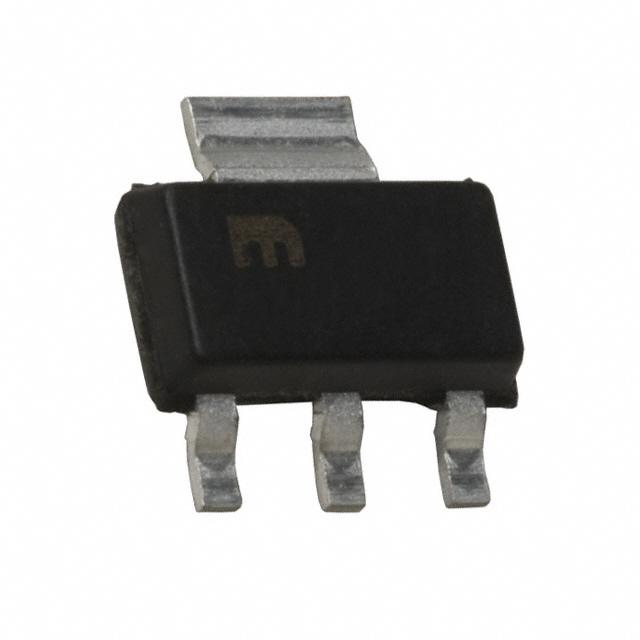

This component is supplied in a SOT-223 surface mount package, suitable for various electronic designs. The operating temperature range is from -40°C to 125°C, making it adaptable to different environmental conditions. The MIC5201-5.0YS is a reliable choice for power management in a wide array of electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MIC5201-5.0YS has a fixed output voltage of 5V.
The maximum output current for the MIC5201-5.0YS is 200mA.
The MIC5201-5.0YS can accept a maximum input voltage of 26V.
The MIC5201-5.0YS includes over current, over temperature, and reverse polarity protection.
The operating temperature range for the MIC5201-5.0YS is -40°C to 125°C.
The MIC5201-5.0YS is supplied in a SOT-223 surface mount package.
