| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,593 pcs
|
3593 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,153 pcs
|
2153 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | 1741 | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |

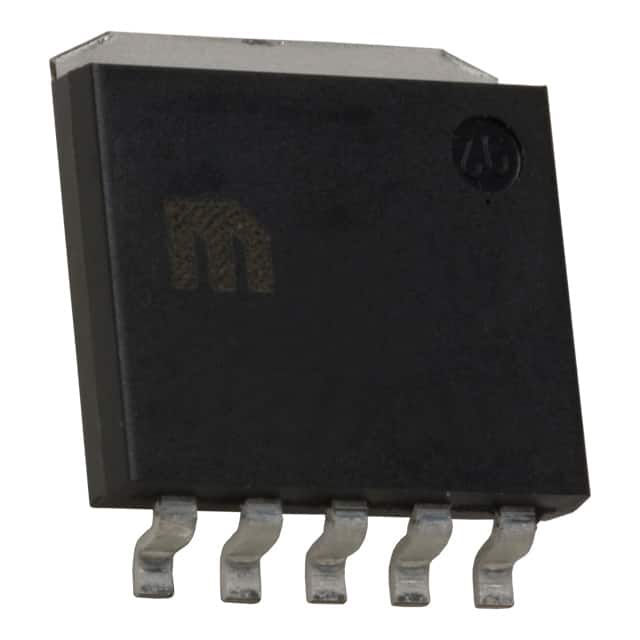

The MIC49150WR from Microchip Technology is a high-bandwidth, low-dropout linear voltage regulator designed for powering core voltages of low-power microprocessors. It offers an adjustable output voltage down to 0.9V and a maximum output current of 1.5A.
Key electrical specifications include an input voltage range of 1.4V to 6.5V for the main supply and 3.0V to 6.5V for the bias supply. The maximum dropout voltage is 0.5V at 1.5A. Protection features include over current and over temperature shutdown.
This regulator is available in an S-PAK-5 package and is designed for surface mount applications. The operating temperature range is -40°C to 125°C, making it suitable for demanding environments. It requires a minimum output capacitance for stability, working optimally with small ceramic capacitors.
Applications include graphics processors, PC add-in cards, microprocessor core voltage supply, low voltage digital ICs, and SMPS post regulators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.9V to 5V.
The MIC49150WR can deliver up to 1.5A.
The maximum dropout voltage is 0.5V at 1.5A.
The operating temperature range is -40°C to +125°C.
It is available in a surface-mount S-PAK-5 package.
The main input voltage (V_IN) range is 1.4V to 6.5V, and the bias voltage (V_BIAS) range is 3.0V to 6.5V.
Yes, it includes over-current and over-temperature protection.
