| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
270 pcs
|
270 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Propagation Delay | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |

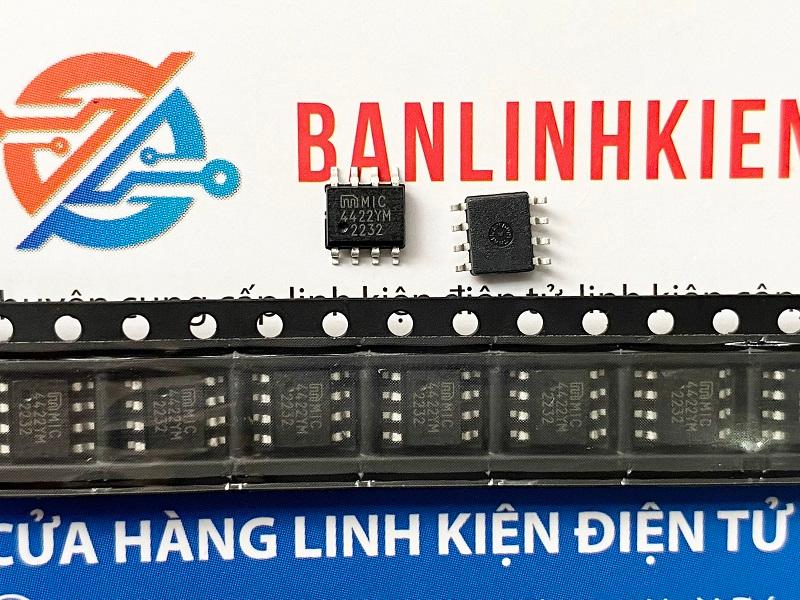

The MIC4422YM, manufactured by Micrel Inc. (now Microchip Technology), is a single-channel, high-speed MOSFET driver IC. It delivers a powerful ±9A peak output current, making it suitable for driving N-channel power MOSFETs or IGBTs in demanding applications.
Key electrical specifications include an operating supply voltage range of 4.5V to 18V. The driver boasts a fast propagation delay of approximately 25 ns and a rise/fall time of around 25 ns when driving a 1000 pF load. These characteristics ensure efficient and rapid switching performance.
This IC is housed in a compact SOIC-8 surface-mount package, designated by 'YM'. Its design is optimized for use in switch mode power supplies, inverters, and motor control circuits where high-performance power switching is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range for the MIC4422YM is 4.5V to 18V.
The MIC4422YM has a peak output current of ±9A.
The propagation delay of the MIC4422YM is approximately 25 ns.
The rise/fall time for the MIC4422YM with a 1000 pF load is approximately 25 ns.
The MIC4422YM is available in a SOIC-8 surface-mount package.
