Mfr Part #:

MIC39101-1.8BM

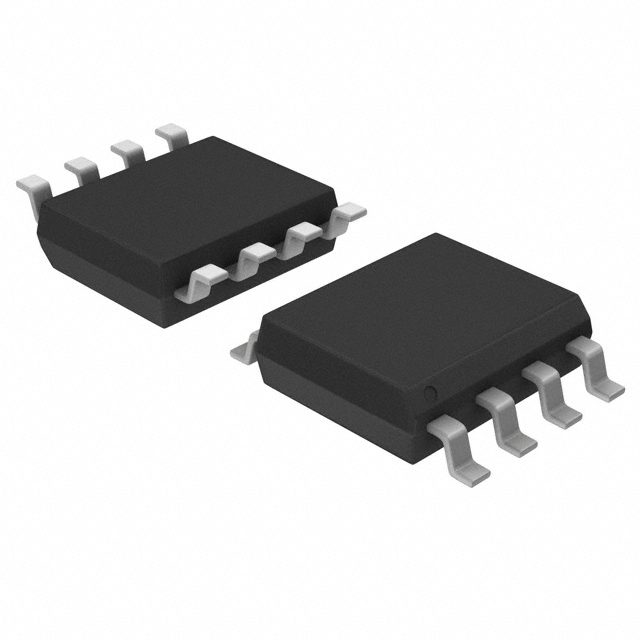

The Micrel Inc. MIC39101-1.8BM is a 1A low-voltage, low-dropout linear voltage regulator. It offers a fixed 1.8V output with a typical dropout voltage of 410mV at 1A.

✓ Total Stock: 51,658 pcs

$ Price Range: $0.28

MIC39101-1.8BM Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	51,657 pcs On Request	51657 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Hybrid Electronics ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MIC39101-1.8BM Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Micrel Inc.
Mounting Type	SMD/SMT
Output Current	1A
Output Voltage	1.8V
SVHC Present	Not Present

View Similar Products (0)

MIC39101-1.8BM Description

Short technical summary and product information.

The MIC39101-1.8BM from Micrel Inc. is a 1A low-dropout linear voltage regulator designed for low-voltage, high-current applications. It utilizes a proprietary Super βeta PNP™ pass element, resulting in extremely low dropout voltage, typically 410mV at 1A, and low ground current, typically 11mA at 1A. This regulator is ideal for applications requiring voltage conversion, such as from 3.3V to 2.5V or 2.5V to 1.8V.

Key features include a guaranteed minimum output current of 1A, 1% initial accuracy, and protection against overcurrent, thermal shutdown, and reversed battery conditions. The MIC39101 series is available in a thermally enhanced power 8-lead SOIC package, suitable for surface mount applications. The device also includes an enable pin for control and an open-collector error flag output.

This regulator is well-suited for PC add-in cards, PowerPC™ power supplies, high-efficiency linear power supplies, SMPS post regulators, multimedia and PC processor supplies, battery chargers, and low-voltage microcontrollers and digital logic. Its low-profile package and robust protection features make it a reliable choice for demanding designs.

MIC39101-1.8BM Quick Information

Product Type: Voltage Regulator - Linear

Series: MIC39101

Canonical Name: MIC39101-1.8BM 1A Low-Voltage Low-Dropout Regulator

Subcategory: Linear

MIC39101-1.8BM Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MIC39101-1.8BM Estimated Pricing

Qty	Low	High
1+	$0.28	$0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

MIC39101-1.8BM Features

1A minimum guaranteed output current.
410mV typical dropout voltage at 1A.
Fully protected with overcurrent limit.
Thermal shutdown and reversed-battery protection.
Available in SOIC-8 power package.

MIC39101-1.8BM Applications

Ideal for 3.0V to 2.5V conversion.
Ideal for 2.5V to 1.8V conversion.
LDO linear regulator for PC add-in cards.
Power supplies for microcontrollers and logic.
Battery chargers and SMPS post regulators.

MIC39101-1.8BM FAQs

6 frequently asked questions generated from this part’s specifications.

What is the package type for the MIC39101-1.8BM?

The MIC39101-1.8BM is available in an SOIC-8 package.

What is the output voltage of the MIC39101-1.8BM?

The output voltage is fixed at 1.8V.

What is the maximum output current?

The minimum output current rating is 1A.

What is the typical dropout voltage at 1A?

The typical dropout voltage is 410mV at 1A, with a maximum of 630mV over all operating conditions.

What is the function of the enable pin?

The enable input is CMOS-compatible: logic high enables the regulator; logic low or open shuts it down.

Does the MIC39101-1.8BM have a fault flag output?

Yes, it has an open-collector error flag output for fault indication.
