| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,459 pcs
|
32459 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request | |
|
304 pcs
|
304 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Input Voltage | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| PSRR | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |
The MIC38150HYHL-TR from Microchip Technology is a 1.5A continuous output current step-down converter. It belongs to the HELDO® (High Efficiency Low DropOut Regulators) family, combining the ease of use and low noise of an LDO with the efficiency of a switching regulator.
This converter operates with input voltages ranging from 3.0V to 5.5V and provides adjustable output voltages down to 1.0V. It is designed to deliver less than 5mV of peak-to-peak noise and over 70dB of PSRR at 1kHz. The architecture is optimized for fast load transients, maintaining less than 30mV of output voltage deviation during rapid load steps, making it suitable for low voltage ASICs and digital ICs.
The MIC38150HYHL-TR features a fully integrated switching regulator and LDO combination with integrated MOSFET switches. It includes micro-power shutdown, thermal shutdown, and current limit protection. The device is housed in a compact 28-pin 4mm x 6mm x 0.9mm MLF® package and operates across a temperature range of -40°C to +125°C.
Applications include point-of-load, networking, server, industrial power, wireless base-stations, and sensitive RF applications. Its surface mount type and compact size make it ideal for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MIC38150HYHL-TR has an output current capability of up to 1.5A.
The input voltage range for the MIC38150HYHL-TR is from 3.0V to 5.5V.
The MIC38150HYHL-TR offers an adjustable output voltage down to 1.0V.
The MIC38150HYHL-TR is designed to provide less than 5mV of peak-to-peak noise.
The MIC38150HYHL-TR can operate from -40°C to +125°C.

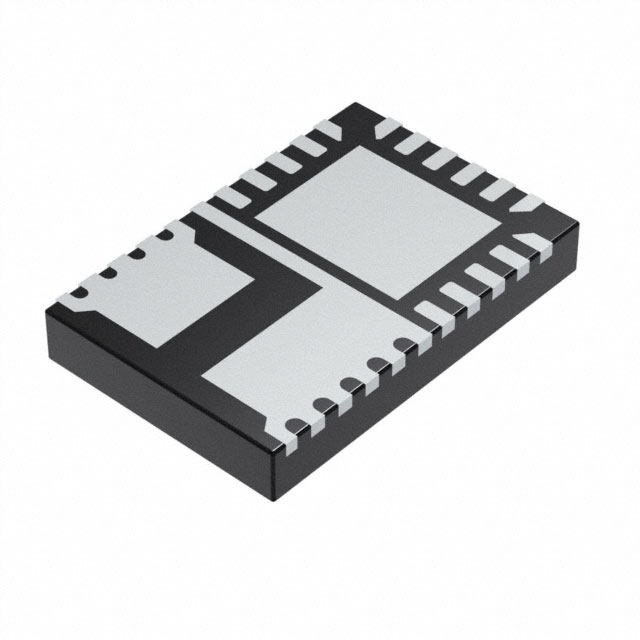

The MIC38150HYHL-TR is supplied in a 28-MLF® (6x4) package.
