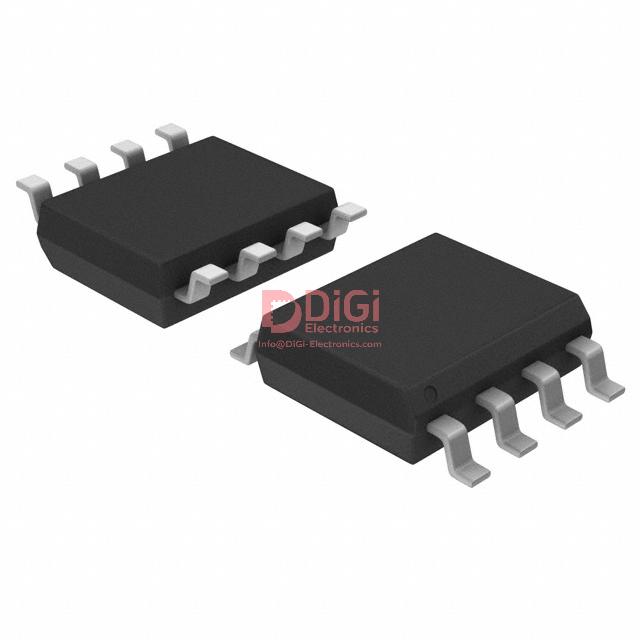

The MIC3808YM from Micrel Inc. is a complementary output push-pull PWM control IC designed for high-speed and low-power consumption. It is suitable for telecom-level isolated step-down DC/DC conversion applications requiring high output current, small size, and high efficiency.
Key electrical specifications include a supply voltage range of 9V to 20V, a switching frequency of 500kHz, and a duty cycle of 96%. The device features a typical start-up current of 130 µA and a run current of 1 mA. The internal error amplifier supports operation up to 1MHz with a 4MHz gain bandwidth product. Output drive stages are capable of 500mA peak source current and 1A peak sink current. The dead-time between the two outputs is adjustable between 60ns and 200ns.
This controller is built on a low-power, high-speed BiCMOS process. It is available in an 8-SOIC package with surface mount mounting type. The operating temperature range is -40°C to 150°C, making it suitable for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage for the MIC3808YM is between 9V and 20V.
The MIC3808YM has a switching frequency of 500kHz.
The MIC3808YM operates in a temperature range of -40°C to 150°C.
The MIC3808YM is available in an 8-SOIC package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
