| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35,000 pcs
|
35000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Protection Features | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout (Max) |

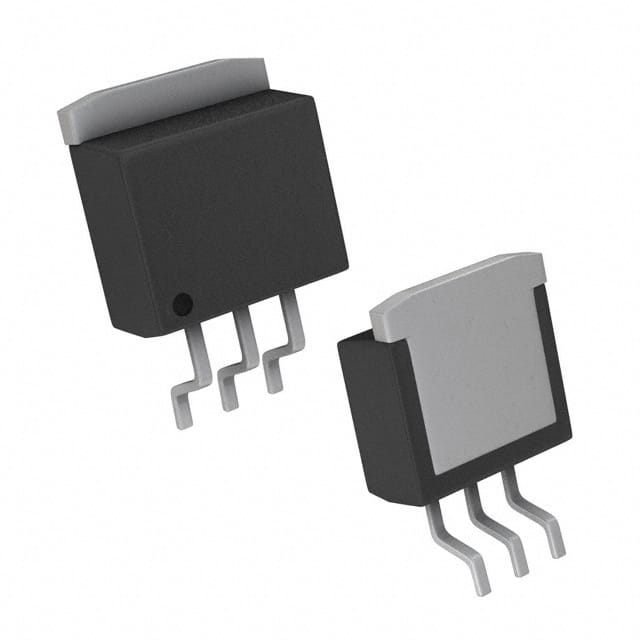

The MIC2940A-3.3WU-TR from Microchip Technology is a positive fixed linear voltage regulator. It provides a stable 3.3V output voltage with a maximum output current capability of 1.25A. The device features a low dropout voltage of 0.6V at 1.25A, making it efficient for various power management applications.
Designed for surface mounting, this regulator comes in a TO-263-4, D²Pak package. It operates within a temperature range of -40°C to 125°C and includes protection features such as over current, over temperature, and reverse polarity protection. The quiescent current is typically 500 µA, with a maximum supply current of 70 mA.
This component is suitable for applications requiring a reliable and efficient voltage regulation solution. Its robust protection features and wide operating temperature range make it a versatile choice for embedded systems and power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MIC2940A-3.3WU-TR provides a fixed output voltage of 3.3V.
The maximum output current for the MIC2940A-3.3WU-TR is 1.25A.
The dropout voltage is 0.6V at a load of 1.25A.
The operating temperature range is -40°C to 125°C.
The MIC2940A-3.3WU-TR is supplied in a TO-263-4, D²Pak (3 Leads + Tab), TO-263AA package.
Protection features include over current, over temperature, and reverse polarity.
