| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,195 pcs
|
1195 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
364 pcs
|
364 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |

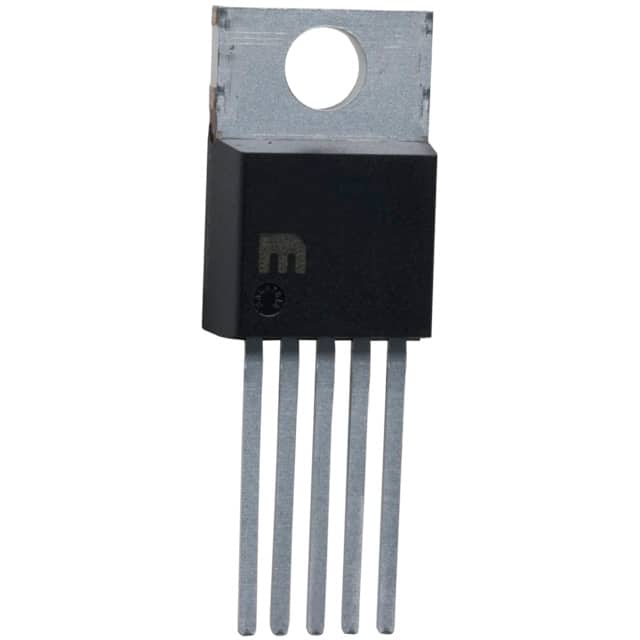

The MIC29302WT from Microchip Technology is a versatile linear voltage regulator IC designed for positive adjustable output applications. It can provide up to 3A of output current and accepts an input voltage up to 26V, with an adjustable output voltage ranging from 1.25V to 25V. The device features a low dropout voltage of 0.6V at 3A, making it suitable for power-sensitive applications.
This regulator is housed in a TO-220-5 package and supports through-hole mounting. It includes control features like Enable and protection features such as Over Current, Over Temperature, Reverse Polarity, and Transient Voltage protection, enhancing its reliability in various operating conditions. The operating temperature range is from -40°C to 125°C.
Key electrical specifications include a maximum input voltage of 26V and a maximum output voltage of 25V. The adjustable output voltage starts at a minimum of 1.25V. With its robust protection features and wide operating temperature range, the MIC29302WT is well-suited for a variety of power management designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum input voltage for the MIC29302WT is 26V.
The output voltage can be adjusted from 1.25V to 25V.
The MIC29302WT can deliver a maximum output current of 3A.
The dropout voltage is 0.6V at 3A.
The operating temperature range is -40°C to 125°C.
The MIC29302WT is supplied in a TO-220-5 package.
