| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Topology | |
| Voltage | |
| w |
The MIC2800-G1JSYML-TR from Microchip Technology is a high-performance power management IC designed for efficiency and flexibility. It integrates a 2 MHz DC/DC converter capable of up to 600 mA output current in PWM mode, alongside two 300 mA LDOs. This configuration allows for three distinct output voltages, making it suitable for various power management needs.
The device operates within a 2.7V to 5.5V input voltage range. A key feature is the LOWQ mode, which reduces the total quiescent current to just 30 µA, ideal for low-power applications. In this mode, the DC/DC converter's output noise is significantly reduced to 75 µVRMS, minimizing interference with sensitive circuitry.
LDO1 is designed for maximum efficiency by connecting directly to the DC/DC converter's output, supporting conversions down to 0.8V. LDO2 provides an additional 300 mA output current capability. The MIC2800 includes integrated power-on reset (POR) with adjustable delay time, thermal shutdown protection, and current limit protection.

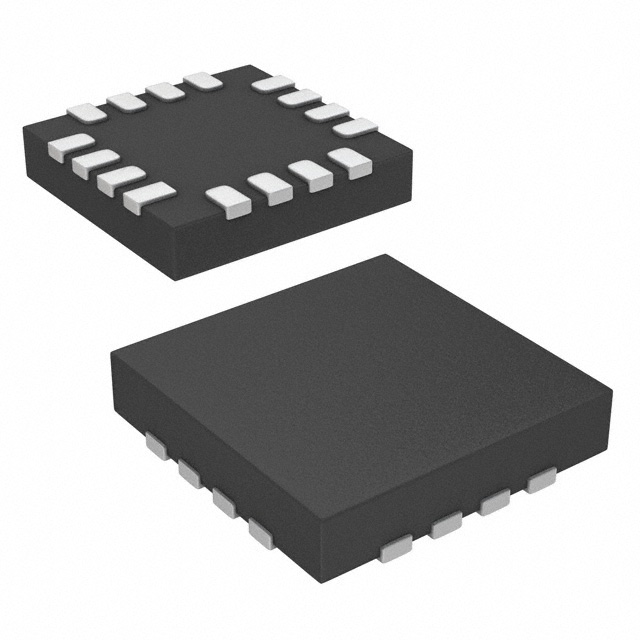

Packaged in a compact 16-pin 3mm x 3mm QFN, the MIC2800-G1JSYML-TR is well-suited for embedded MPU and MCU power, portable and wearable applications, low-power RF systems, and backup power systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7V to 5.5V.
The DC/DC converter can provide up to 600 mA of output current in PWM mode.
The switching frequency is 2MHz.
The operating temperature range is -40°C to 125°C.
This device has 3 outputs.
The total quiescent current in LOWQ mode is 30 µA.
The package type is a 16-pin 3mm x 3mm QFN.
