| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,843 pcs
|
31843 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request | |
|
445 pcs
|
445 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Micrel MIC26601YJL-TR is a constant-frequency, synchronous buck regulator that operates from a 4.5V to 28V input supply, providing a regulated output of up to 6A. It features an adaptive on-time control architecture for ultra-fast transient response and reduced output capacitance.
The output voltage is adjustable from 0.8V to 5.5V with a guaranteed accuracy of ±1%. The device operates at a switching frequency of 600kHz and requires no external compensation. It includes a full suite of protection features such as undervoltage lockout, internal soft-start, foldback current limit, "hiccup mode" short-circuit protection, and thermal shutdown.

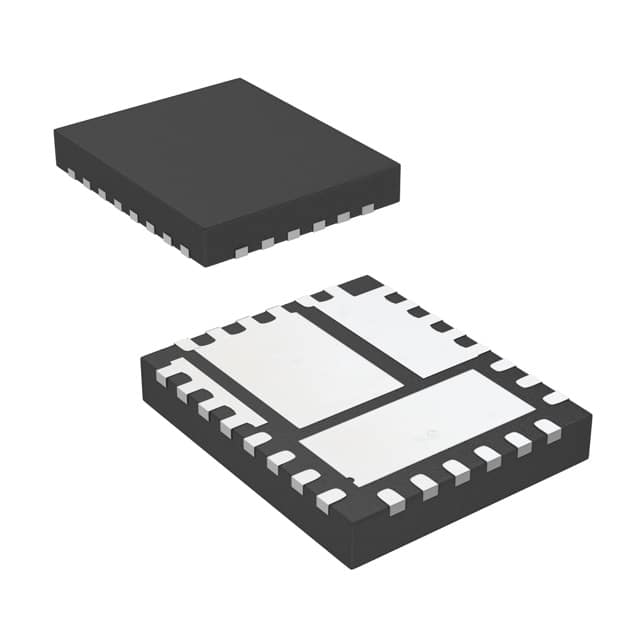

This regulator is available in a 28-pin 5mm x 6mm MLF® package, suitable for surface mounting. Its design is "Any Capacitor™" stable, accommodating zero-to-high ESR capacitors.
Applications for the MIC26601YJL-TR include distributed power systems, communications and networking infrastructure, set-top boxes, gateways, routers, printers, scanners, graphic cards, and video cards.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 28V.
The device can provide up to 6A of output current.
The output voltage is adjustable from 0.8V to 5.5V.
The switching frequency is 600kHz.
The operating junction temperature range is -40°C to +125°C.
It is supplied in a 28-pin 5mm x 6mm MLF® package.
