| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,823 pcs
|
31823 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Type | |
| Voltage |

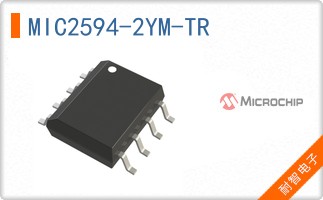

The MIC2594-2YM-TR from Microchip Technology is a single-channel, negative high-voltage hot swap controller. It is designed to facilitate the safe insertion and removal of circuit boards into live high-voltage system backplanes, utilizing minimal external components. This controller operates within a voltage range of -19V to -80V and features an electronic circuit breaker function with a built-in 400µs nuisance-trip delay.
Key electrical characteristics include a quiescent current of 3 mA and support for -48V applications. Programmable features allow for control over inrush current limiting, output voltage slew rate, and undervoltage lockout (UVLO). The device provides fault reporting through its Power-Good signal.
The MIC2594-2YM-TR is housed in an 8-SOIC package, measuring 0.154 inches (3.90mm) in width, and is designed for surface mount applications. Its operating temperature range is -40°C to 85°C, making it suitable for various industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-80V to -19V
8-SOIC (0.154", 3.90mm Width)
-40°C to 85°C
Current Limit, Slew Rate, UVLO
1 channel
Surface Mount
