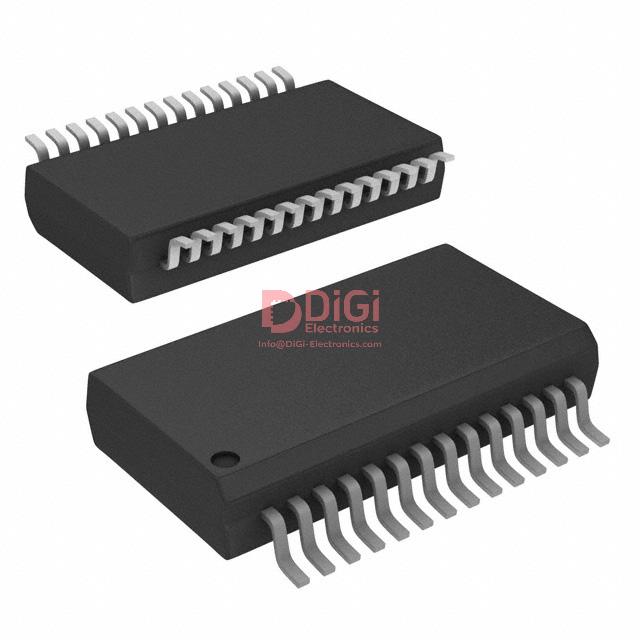

The MIC2563A-1YSM is a dual-slot PCMCIA and CardBus power controller designed by Microchip Technology. This integrated circuit manages all PC Card slot power supply pins, including VCC and VPP. It offers a switch matrix capable of handling VCC voltages of 0V, 3.3V, and 5.0V, along with VPP voltages of OFF, 0V, 3.3V, 5V, or 12.0V.
Key electrical specifications include an output current of up to 1A for VCC and 250mA for VPP per section. The device operates with a supply voltage that is not required, simplifying system design. It features N-channel outputs in a low-side configuration with an Rds On (Typ) of 1.8 Ohm. The interface is logic-compatible, and the input type is non-inverting.
Designed for efficiency, the MIC2563A-1YSM includes output current limiting and overtemperature shutdown for fault protection. It operates within a temperature range of -40°C to 85°C (TA). The component is housed in a 28-pin SSOP package, suitable for surface mounting.
This power controller is ideal for applications requiring precise power management for PCMCIA and CardBus slots, such as data collection systems, machine control, wireless communications, and docking stations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current for VCC is 1A per section.
The maximum output current for VPP is 250mA per section.
The typical on-resistance is 1.8 Ohm.
The operating temperature range is -40°C to 85°C (TA).
It switches between VCC voltages of 0V, 3.3V, and 5.0V, and VPP voltages of OFF, 0V, 3.3V, 5V, or 12.0V.
The MIC2563A-1YSM is available in a 28-pin SSOP package.
It includes current limiting and overtemperature shutdown.
