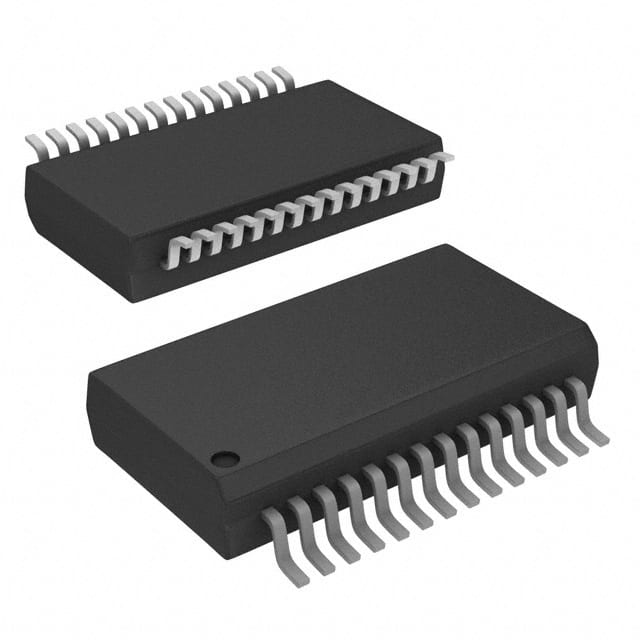

MIC2563A-0BSM The MIC2563A-0BSM is an N-Channel power switch from Microchip Technology. It offers a 3:4 input/output ratio and a low Rds On resistance.
Mfr Part #:

MIC2563A-0BSM

Available from 1 distributors
Mfr Name: MRL
MRL
The MIC2563A-0BSM is an N-Channel power switch from Microchip Technology. It offers a 3:4 input/output ratio and a low Rds On resistance.
✓ Total Stock: 10 pcs
$ Price Range: $0.32

MIC2563A-0BSM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 0119 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MIC2563A-0BSM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Features
Input Type
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage Supply
View Similar Products (0)

MIC2563A-0BSM Description

Short technical summary and product information.

The MIC2563A-0BSM is an N-Channel power switch designed for various applications. It features a 3:4 input to output ratio and a typical Rds On resistance of 1.8 Ohms. The device can handle an output current of up to 200mA and operates with load voltages of 3.3V, 5V, and 12V.



This power switch is housed in a 28-SSOP package, suitable for surface mounting. It includes integrated features for current limiting and over-temperature protection, enhancing system reliability. The operating temperature range is -40°C to 85°C.



Designed for flexibility, the MIC2563A-0BSM is suitable for applications requiring controlled power distribution. Its low-side output configuration and non-inverting input type simplify integration into existing designs.

MIC2563A-0BSM Quick Information

Product Type: Power Distribution Switch
Canonical Name: MIC2563A-0BSM N-Channel Power Switch
Subcategory: Load Driver

MIC2563A-0BSM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MIC2563A-0BSM Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

MIC2563A-0BSM Features

  • N-Channel power switch IC.
  • 3:4 input to output ratio.
  • Low Rds On resistance.
  • Surface mount 28-SSOP package.
  • Integrated protection features.

MIC2563A-0BSM Applications

  • PCMCIA card power switching applications
  • Low-side load switching for portable devices
  • Power distribution for 3.3V/5V/12V loads
  • Overcurrent protected load driver circuits
  • Surface mount power management solutions

MIC2563A-0BSM FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum output current per channel?

200mA per channel.

What is the typical on-resistance?

1.8 Ohms.

What load voltages does the MIC2563A-0BSM support?

3.3V, 5V, and 12V.

What is the operating temperature range?

-40°C to 85°C.

What package is the MIC2563A-0BSM available in?

28-SSOP (0.209", 5.30mm Width).

How many outputs does the MIC2563A-0BSM have?

4 outputs.

What protection features are included?

Fixed current limiting and over-temperature protection.
