| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type |

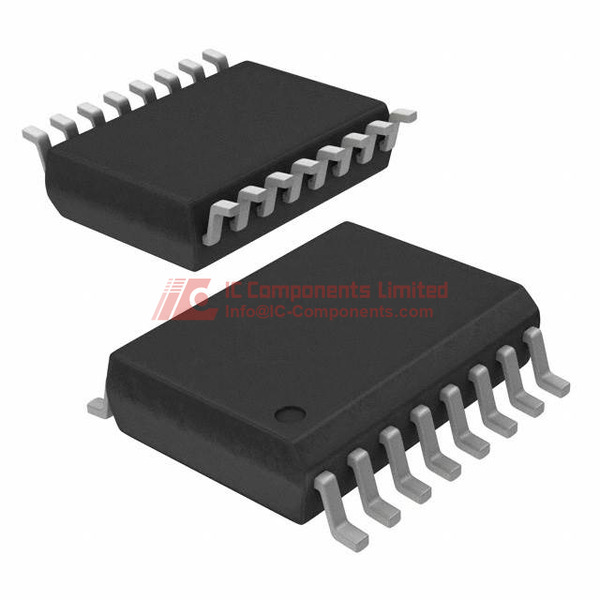

The MIC2560-0BWM is an N-Channel power distribution switch manufactured by Microchip Technology. This component is designed for power management applications, offering a 3:2 input to output ratio and a low-side output configuration. It supports multiple load voltages including 3.3V, 5V, and 12V, with a typical Rds On resistance of 550mOhm.
The device is housed in a 16-SOIC package and is designed for surface mounting. Key features include status flag output, fault protection, fixed current limiting, and over-temperature protection, making it suitable for various power switching needs. The operating temperature range is -40°C to 85°C.
This power switch is ideal for applications requiring controlled power distribution and protection. Its robust features and standard packaging facilitate integration into diverse electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MIC2560-0BWM supports load voltages of 3.3V, 5V, and 12V.
The typical Rds On for the MIC2560-0BWM is 550mOhm.
The MIC2560-0BWM operates within a temperature range of -40°C to 85°C.
The MIC2560-0BWM has 2 outputs.
The MIC2560-0BWM is supplied in a 16-SOIC package.
Key features include status flag, fault protection, fixed current limiting, and over temperature protection.
