| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,624 pcs
|
31624 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Tape & Reel | |
| Voltage |

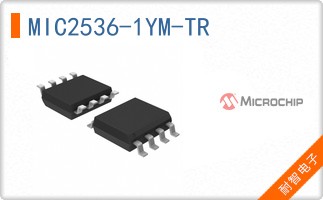

The MIC2536-1YM-TR from Microchip Technology is a cost-effective, dual-channel high-side power switch designed for bus-powered Universal Serial Bus (USB) applications. Each channel can supply up to 100mA, meeting USB requirements for downstream devices.
This device features fast-acting current limiting, typically 275mA, and thermal shutdown to protect against overcurrent loads. It includes a flag output with a transient filter to indicate fault conditions, ignoring short signals from hot-plug events. The soft-start circuit prevents voltage droop on other ports during switch enablement.
With a 2.7V to 5.5V operating range and 400mOhm typical on-resistance, the MIC2536-1YM-TR is suitable for various power distribution needs. It is available in an 8-lead SOIC package, suitable for surface mounting.
Key features include 3.3V and 5V logic-compatible enable inputs, active-high and active-low versions, and reverse-current blocking. Its operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7V to 5.5V.
8-SOIC (0.154", 3.90mm Width).
-40°C to 85°C.
400mOhm.
150mA minimum.
Current limiting (fixed), over-temperature protection, and reverse current protection.
High-side N-channel with a 1:2 ratio.
