| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,594 pcs
|
31594 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Features | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Type | |
| Voltage |
The MIC2342-2YTQ-TR is a hot plug controller designed by Microchip Technology for Peripheral Component Interconnect Express (PCI Express) hot-plug compliant systems. This device provides comprehensive power control for two PCI Express slots, including the 3.3VAUX supply as defined by PCI Express standards.
Key features include support for 12V, 3.3V, and 3.3VAUX supplies, with integrated power MOSFETs for the 3.3VAUX rails. It offers programmable gate voltage slew-rate control, voltage supervision, programmable current limit, and circuit breaker functions for robust system protection and fault isolation. The controller also supports standby operation for Wake-on-LAN applications.
This controller supports PCI Express specifications v1.0a and v2.0. It features dual-level, dual-speed fault detection for fast response without nuisance tripping. Signal outputs include /PWRGD, delayed /PWRGD, and separate /FAULT signals for MAIN and AUX rails per slot, along with a global Power-is-Good output.

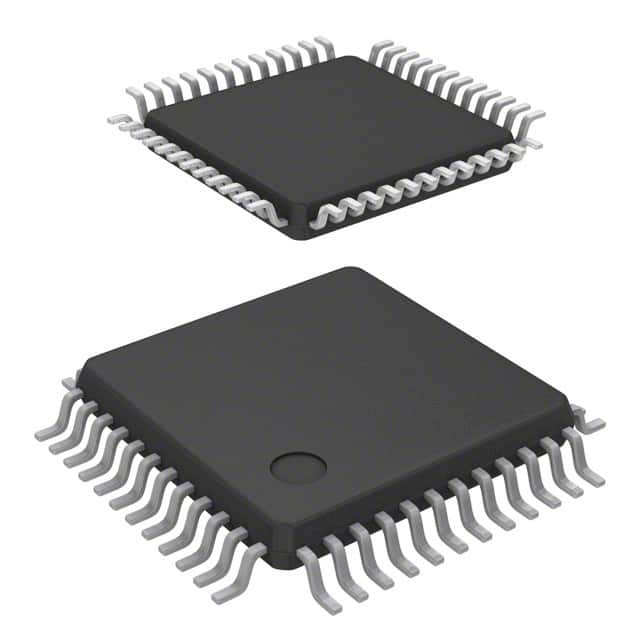

The MIC2342-2YTQ-TR is supplied in a 48-TQFP (7x7) surface-mount package. It operates within a temperature range of 0°C to 70°C and supports voltages of 3V to 3.6V and 11V to 13V.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MIC2342-2YTQ-TR is a hot plug controller.
It supports 6 channels.
It operates with 3.3V and 12V supplies.
The operating temperature range is 0°C to 70°C.
It is supplied in a 48-TQFP (7x7) package.
It supports PCI Express specifications v1.0a and v2.0.
Programmable features include circuit breaker, current limit, fault timeout, and slew rate control.
