| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,583 pcs
|
31583 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Industrial Grade | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Package / Case | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

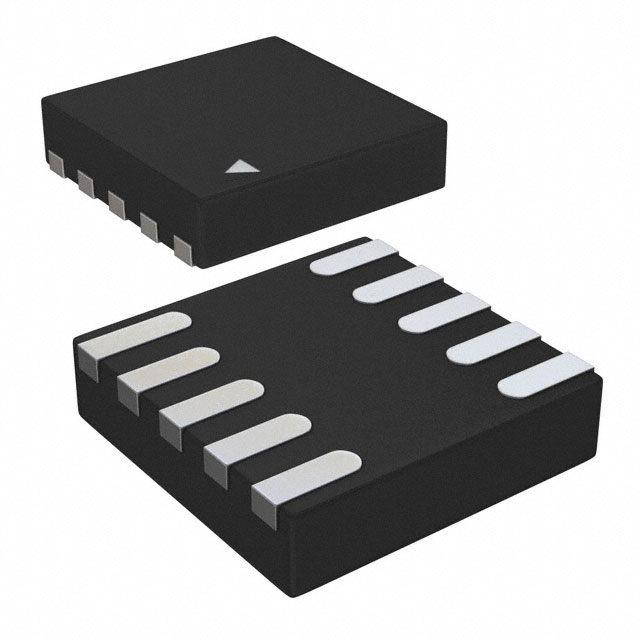

The MIC23250-S4YMT-TR from Microchip Technology is a high-efficiency, 4MHz dual synchronous buck regulator. It features HyperLight Load™ mode for excellent efficiency at light loads and ultra-fast transient response, making it suitable for processor core voltages. Each of the two outputs can deliver up to 400mA.
This regulator operates with an input voltage range of 2.7V to 5.5V and a junction temperature range of -40°C to +125°C. It utilizes a 2mm x 2mm Thin MLF® package, requiring minimal external components. The device is designed for use with a 1µH inductor and a 4.7µF output capacitor, enabling a sub-1mm height solution.
Key electrical characteristics include a low quiescent current of 33µA with both outputs enabled and peak efficiencies up to 94%. In PWM operation, it maintains a constant switching frequency around 4MHz. The fixed output voltage option is available in a 10-pin 2mm x 2mm Thin MLF® package.
Applications for the MIC23250-S4YMT-TR include mobile handsets, portable media players, GPS devices, digital cameras, and USB-powered devices. Its compact size and high performance make it ideal for space-constrained portable electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7V to 5.5V.
Each output channel can deliver up to 400mA.
The switching frequency is 4MHz in PWM operation.
The operating junction temperature range is -40°C to +125°C.
It is supplied in a 10-TMLF® (2x2) package.
It is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
