| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,582 pcs
|
31582 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Quiescent Current | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The MIC23250-M4YMT-TR is a high-efficiency, 4MHz dual synchronous buck regulator featuring HyperLight Load mode for excellent light-load efficiency and fast transient response. It is designed to supply processor core voltages and other sensitive loads.
This regulator supports an input voltage range of 2.7V to 5.5V and provides two independent outputs, each capable of delivering up to 400mA. The fixed output voltages are 1.2V and 2.8V. The device operates at a constant switching frequency of 4MHz in PWM mode, with peak efficiencies up to 94% and 85% efficiency at 1mA load.

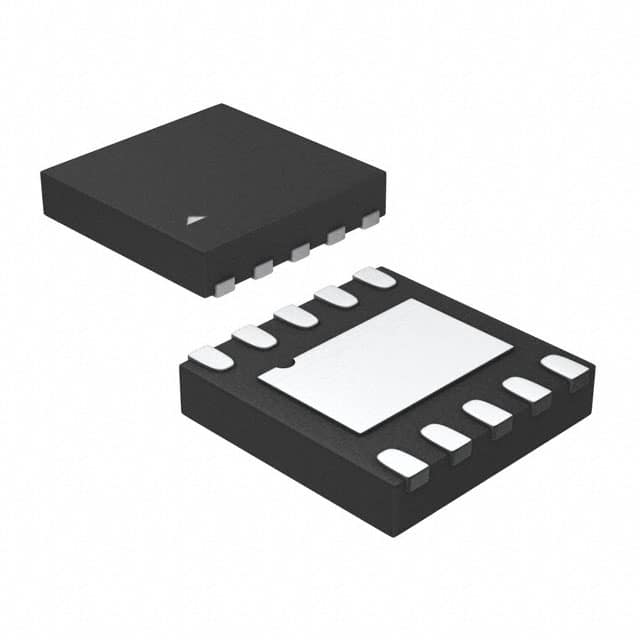

The MIC23250-M4YMT-TR is housed in a compact 10-TMLF® (2x2mm) package, requiring minimal external components. It is designed for surface mount applications and operates over a junction temperature range of -40°C to +125°C.
Key features include a low quiescent current of 33µA (dual output enabled), ultra-fast transient response, and low output ripple voltage. It is suitable for applications such as mobile handsets, portable media players, and USB-powered devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7V to 5.5V.
1.2V and 2.8V fixed.
400mA per channel.
4MHz.
-40°C to +125°C (junction).
10-TMLF® (2x2mm) with exposed pad.
Peak efficiency up to 94%, 85% at 1mA.
