| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,551 pcs
|
31551 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The MIC23099YFT-T5 from Microchip Technology is a highly integrated DC-DC switching regulator designed for efficient power management. This component supports both step-up (boost) and step-down (buck) functions, offering flexibility for various power supply designs.
Key electrical specifications include an adjustable output voltage starting from 0.85V, a maximum output current of 1A, and a switching frequency of up to 1MHz. It features a built-in synchronous rectifier for improved efficiency and includes protection mechanisms such as overcurrent protection and load disconnect.

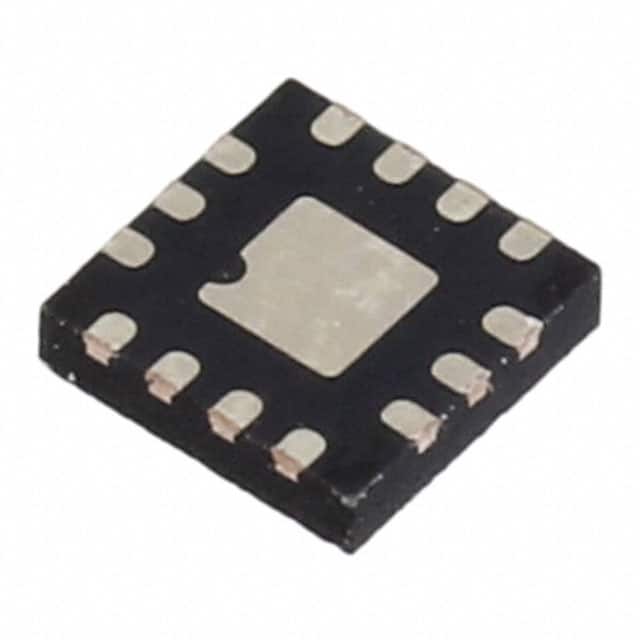

Packaged in a compact 14-UFQFN exposed pad (2.5x2.5mm), the MIC23099YFT-T5 is suitable for surface mount applications. Its operating temperature range is -40°C to +125°C (TJ), making it robust for demanding environments. The device has two output channels, providing a versatile solution for complex power requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable down to 0.85V. The exact range can be set by external resistors.
The device can deliver up to 1A output current.
The primary switching frequency is 1MHz.
It supports both buck (step-down) and boost (step-up) topologies, and can operate in buck-boost mode.
The junction temperature operating range is -40°C to +125°C.
It is available in a QFN-14-EP package with dimensions 2.5x2.5mm (14-UFQFN exposed pad).
Yes, it includes overcurrent protection, cycle-by-cycle current limiting, hiccup current limiting, output discharge, load disconnect, and protection latch.
