| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
752 pcs
|
752 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
752 pcs
|
752 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
727 pcs
|
727 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| SVHC Present | |
| Tape & Reel | |
| Type |

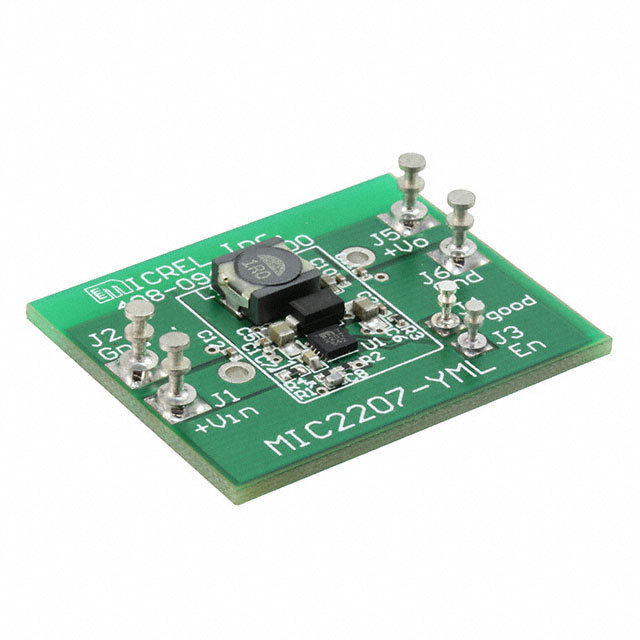

This evaluation board, the MIC2207YML-EV, is manufactured by Microchip Technology and is designed to facilitate the testing and development of the MIC2207 DC/DC switching regulator. The board is configured as a step-down (buck) converter.
Key electrical specifications include an input voltage range of 2.7V to 5.5V and a maximum output current capability of 3A. The switching frequency is set at 2MHz, enabling the use of smaller external components. The board provides a 1.8V fixed output voltage, suitable for various low-voltage applications.
The MIC2207YML-EV is a fully populated board, ready for immediate use in prototyping and design evaluation. Its primary purpose is to demonstrate the functionality and performance of the MIC2207 integrated circuit in a step-down conversion scenario. The compact design and robust specifications make it a valuable tool for engineers developing power management solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7V to 5.5V.
The maximum output current is 3A.
The switching frequency is 2MHz.
It is a DC/DC step-down (buck) switching regulator.
The output voltage is 1.8V.
