| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |

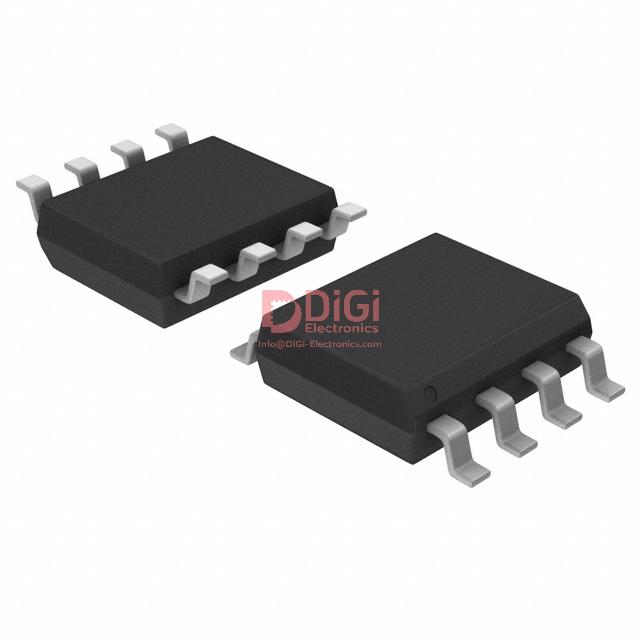

The MIC2075-1YM from Microchip Technology is an N-Channel power distribution switch designed for efficient power management. This component operates with a load voltage range of 2.7V to 5.5V and provides a maximum output current of 500mA.
Key electrical characteristics include a 1:1 input-to-output ratio and a low on-resistance (Rds On) of 90mOhm typical. The switch type is general purpose, with an N-Channel output configuration and High Side control. It features an On/Off interface for control and includes fault protection mechanisms such as current limiting, over-temperature protection, and undervoltage lockout (UVLO).
Packaged in an 8-SOIC surface-mount form factor, the MIC2075-1YM is suitable for various electronic designs. Its operating temperature range is -40°C to 85°C (TA), making it robust for different environmental conditions. The component also includes features like slew rate control and a status flag.
This power switch is part of the MM8 series and is designed for applications requiring reliable power distribution and protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 2.7V to 5.5V.
The MIC2075-1YM is available in an 8-SOIC surface-mount package with a 0.154" body width.
The operating temperature range is -40°C to 85°C ambient.
The output current rating is 500mA.
The typical Rds(on) is 90mOhm.
It includes fixed current limiting, over-temperature protection, and under-voltage lockout.
The output is high-side with an N-channel configuration.
