| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,319 pcs
|
1319 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Tape & Reel | |
| Voltage |

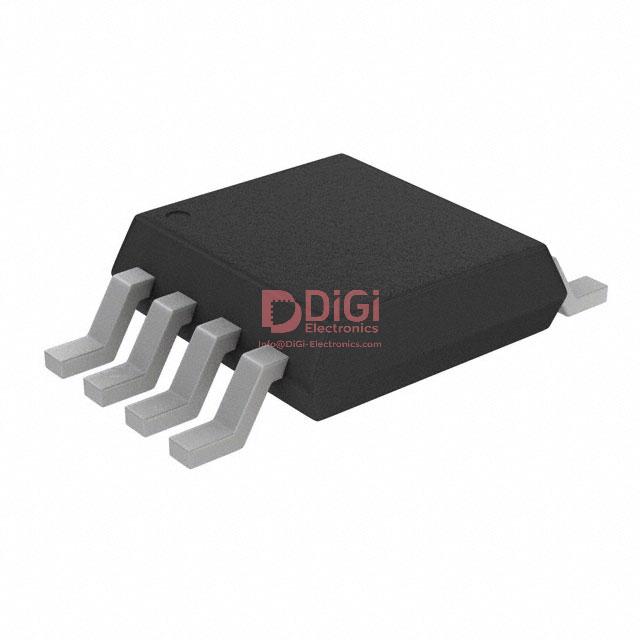

The MIC2041-1YMM from Microchip Technology is a high-side MOSFET switch designed for general-purpose power distribution applications requiring circuit protection. It operates from 1.6V to 5.5V and can handle up to 1.5A of continuous output current. The device features adjustable current limiting, thermal shutdown, and undervoltage lockout (UVLO) to protect both the device and the load.
Key electrical characteristics include a typical on-resistance of 50mOhm and a 1:1 output ratio. The switch type is general purpose with an N-Channel output configuration and a non-inverting, on/off interface. Fault status is indicated via a flag, and the MIC2041 includes an auto-reset circuit breaker mode for overcurrent conditions lasting longer than 28ms.
This power distribution switch is available in a 10-MSOP package suitable for surface mounting. Its operating temperature range is -40°C to 85°C (TA). The MIC2041-1YMM is designed for applications such as USB peripherals, docking stations, and notebook PCs, providing reliable power management and protection.
Applications include docking stations, notebook PCs, PDAs, board hot swap, RAID controllers, USB peripherals, and ACPI power distribution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.6V to 5.5V.
10-MSOP (0.118", 3.00mm width).
-40°C to 85°C ambient.
1.5A continuous.
50mOhm.
Adjustable current limiting, over-temperature protection, and under-voltage lockout (UVLO).
High side N-channel.
