| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
226,000 pcs
|
226000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Input Type | |
| Interface | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Rds On (Typ) | |
| SVHC Present | |
| Storage Temperature | |
| Switch Type | |
| Voltage Supply |

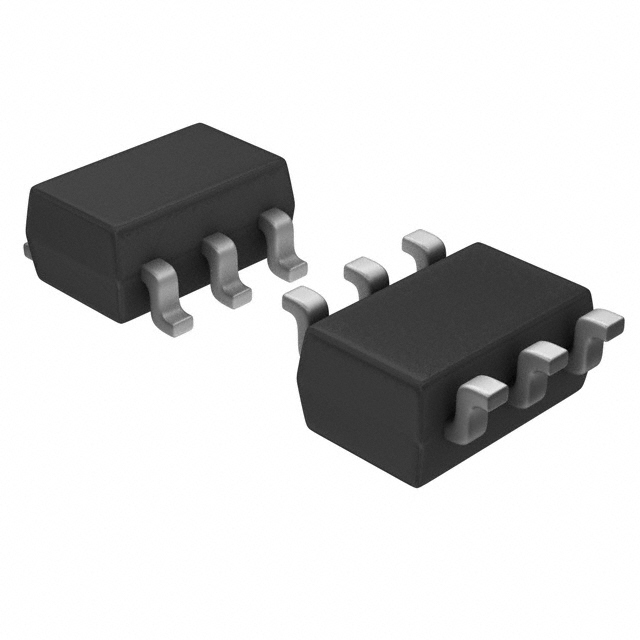

The MIC2005-1.2YM6 is a P-Channel power switch and driver IC manufactured by Micrel Inc. This component is designed for general-purpose applications and features a 1:1 input-to-output ratio with a high-side output configuration.
Key electrical specifications include a maximum output current of 1.2A and a typical Rds On of 70mOhm. The device operates with a load voltage range of 2.5V to 5.5V and does not require a separate supply voltage (Vcc/Vdd). It features an On/Off interface and includes slew rate control, fixed current limiting, and over-temperature protection.
The operating temperature range for the MIC2005-1.2YM6 is from -40°C to 85°C. It is supplied in a SOT-23-6 surface-mount package, making it suitable for space-constrained designs. The component is available in tape and reel or cut tape packaging options.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 2.5V to 5.5V.
The device is housed in a SOT-23-6 package.
-40°C to 85°C.
P-Channel.
On/Off.
No, a separate supply voltage is not required.
1 output.
