| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,200 pcs
|
7200 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Range | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Package / Case | |
| SVHC Present | |
| Switch Type | |
| Tape & Reel |
The MIC2005-0.8YM6 TR from Micrel Inc. is a high-side power switch belonging to the MIC20XX family, designed for current limiting and power distribution. It is suitable for applications in digital televisions, set-top boxes, PCs, and other peripheral devices.
Key electrical specifications include a typical on-resistance of 70mΩ at 5V, a maximum output current of 800mA, and an operating load voltage range of 2.5V to 5.5V. The switch supports both preset and adjustable current limit values, offering flexibility in design. It also features active high or active low enable functionality.

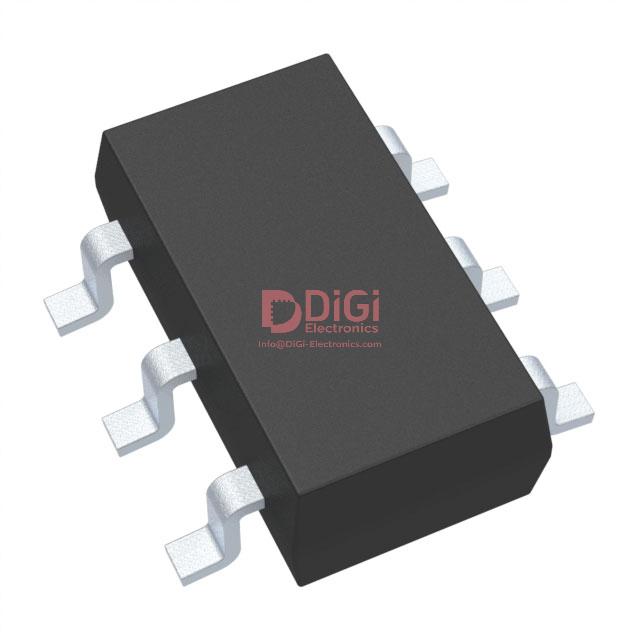

This component is housed in a space-saving SOT-23-6 package, designed for surface mount applications. The MIC20XX family is known for features such as thermal protection, under-voltage lock-out, and fault reporting, making it ideal for systems requiring robust current limiting and power control.
The typical on-resistance is 70 mΩ at 5V supply voltage.
The maximum output current is 800mA.
The load voltage operates in the range of 2.5V to 5.5V.
It is available in a SOT-23-6 package.
The RoHS status is RoHS3 Compliant.
The MSL is Level 1.
