| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Insulator Material | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Withstanding Voltage |

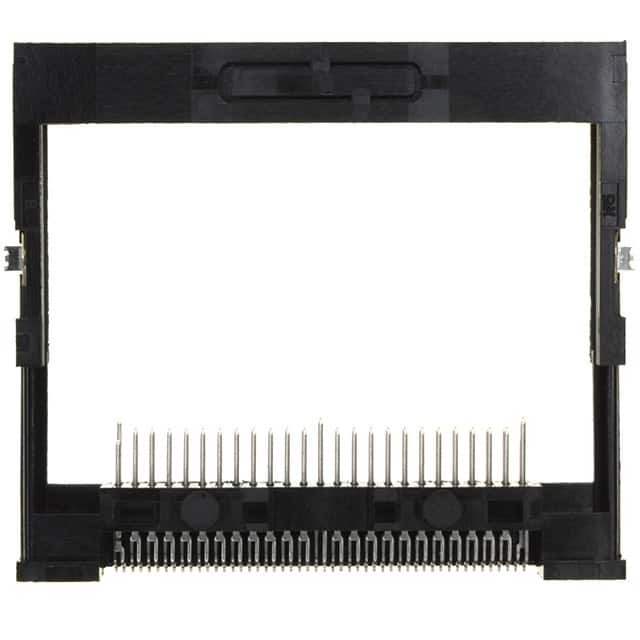

The MI21-50PD-SF(71) is a CompactFlash card connector from Hirose Electric's MI21 series, designed for reliable connection of CompactFlash Type I and Type II memory cards. This receptacle features 50 positions with gold-plated phosphor bronze contacts ensuring excellent conductivity and corrosion resistance. It is surface mounted at a right angle, making it suitable for space-constrained designs.
The insulator is molded from PPS material rated UL94V-0, providing robust flame resistance. The connector includes a board guide for easy alignment during assembly. With a push-in, pull-out insertion and removal method, it supports straightforward card cycling. The contact finish thickness is 0.10 µm (3.94 µin), and the connector stands 7.15 mm above the board.
This part is commonly used in applications such as PDAs, digital still cameras, and other portable electronic devices requiring a robust memory card interface. The MI21 series is designed with a compact footprint and supports automatic pick-and-place assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.58 | $7.58 |
| 10+ | $6.14 | $6.14 |
| 20+ | $5.83 | $5.83 |
| 60+ | $5.67 | $5.67 |
| 100+ | $5.47 | $5.47 |
| 260+ | $5.11 | $5.11 |
| 500+ | $4.88 | $4.88 |
| 1,000+ | $4.85 | $4.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports CompactFlash Type I and Type II cards.
Surface mount, right angle.
Gold plating with a thickness of 0.10 µm (3.94 µin).
-55°C to 85°C.
PPS rated UL94V-0.
500 V AC for 1 minute.
