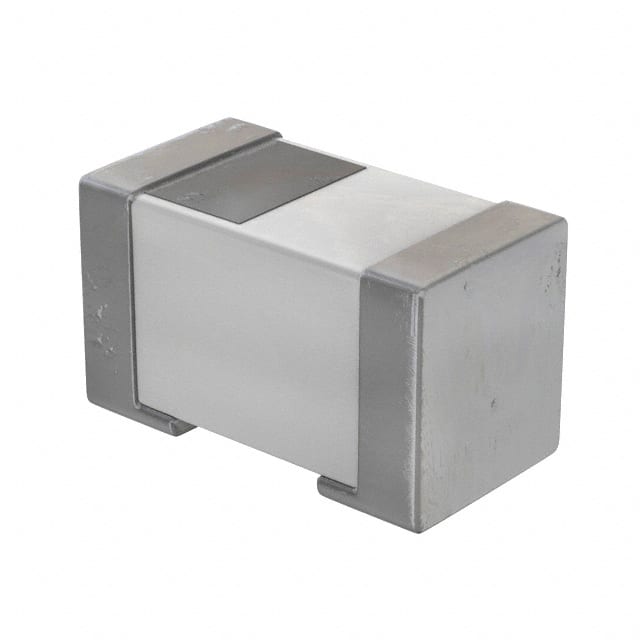

MHQ1005P3N9CT000 The TDK Corporation MHQ1005P3N9CT000 is a multilayer fixed inductor with a 3.9nH inductance and a 900mA current rating. It is designed for surface mounting in a 0402 package.
Mfr Part #:

MHQ1005P3N9CT000

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation MHQ1005P3N9CT000 is a multilayer fixed inductor with a 3.9nH inductance and a 900mA current rating. It is designed for surface mounting in a 0402 package.
✓ Total Stock: 170,000 pcs
$ Price Range: $0.20

MHQ1005P3N9CT000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
170,000 pcs
On Request
170000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MHQ1005P3N9CT000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Industrial Grade
Length
Material
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Storage Temperature
Supplier Device Package
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

MHQ1005P3N9CT000 Description

Short technical summary and product information.

This TDK Corporation MHQ1005P3N9CT000 is a multilayer fixed inductor with a nominal inductance of 3.9 nH and a tolerance of ±0.2nH. It is rated for a current of 900 mA and has a maximum DC resistance of 90mOhm.



The inductor operates within a temperature range of -55°C to 125°C and features an unshielded construction. Its Q factor is 23 at 250MHz, with a self-resonant frequency of 5GHz.



Designed for surface mounting, this component comes in a 0402 (1005 Metric) package. The dimensions are 1.00mm in length and 0.60mm in width and height. The material used is Ceramic, Non-Magnetic.



This inductor is suitable for applications requiring precise inductance values and moderate current handling in a compact form factor.

MHQ1005P3N9CT000 Quick Information

Product Type: Fixed Inductor
Series: MHQ-P
Canonical Name: TDK Corporation MHQ1005P3N9CT000 Multilayer Fixed Inductor 3.9nH 900mA
Subcategory: Multilayer Inductor

MHQ1005P3N9CT000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MHQ1005P3N9CT000 Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MHQ1005P3N9CT000 Features

  • Multilayer fixed inductor with 3.9nH inductance.
  • Rated for 900mA current with 90mOhm max DCR.
  • Unshielded construction for signal integrity.
  • Compact 0402 package for surface mounting.
  • Wide operating temperature range of -55°C to 125°C.

MHQ1005P3N9CT000 Applications

  • Suitable for RF circuits.
  • Used in signal filtering.
  • Ideal for compact electronics.
  • General purpose inductance applications.

MHQ1005P3N9CT000 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the MHQ1005P3N9CT000?

The inductance is 3.9 nH.

What is the current rating for this inductor?

The current rating is 900 mA.

What is the DC resistance (DCR) of the MHQ1005P3N9CT000?

The maximum DC resistance is 90mOhm.

What is the package type for this component?

It is a 0402 (1005 Metric) surface mount package.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.
