| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Current | |
| Input Power | |
| Input Voltage Range | |
| Ion Generator Part Temperature | |
| Mounting Type | |
| Operating Ambient Temperature | |
| Ozone Amount | |
| Ozone Density | |
| Positive Ion Amount | |
| Positive Ion Current | |
| Quantity per Box | |
| Type | |
| Voltage |

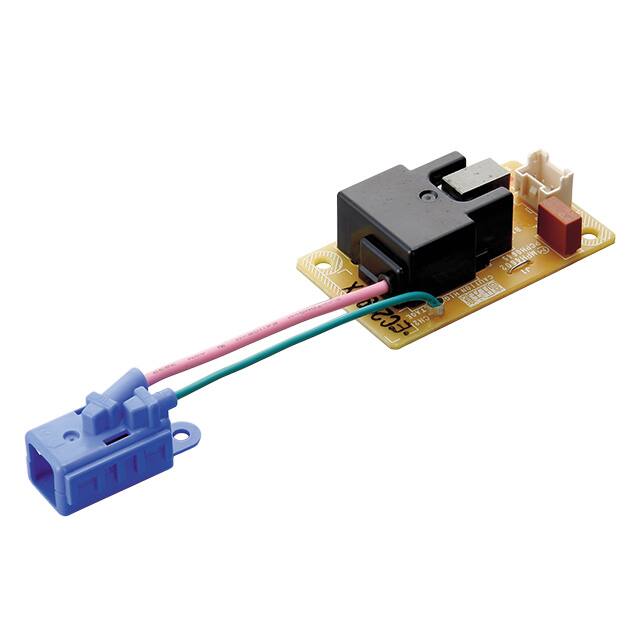

The Murata MHM400-01 is an ionizer module ideal for applications such as air cleaning, static elimination, and skin moisture keeping. It features a positive ion generation amount of typically 5Mpcs/cc and an ozone generation amount of 0.15mg/h or less.
This module is designed with a separation between the high voltage power supply and the ion generator. It is compatible with a DC12V input and operates within a wide ambient temperature range of -10℃ to 50℃, with the ion generator part operating from -10℃ to 70℃. The module utilizes an original ion generating device with retained patents.
Key electrical specifications include an input voltage range of 10.8 to 13.2V, an input current of up to 100mA at 12V, and an input power of up to 1.2W. The initial positive ion amount is typically 5,000,000 pcs/cc, with a typical initial positive ion current of 100 nA. Initial ozone density is up to 0.5 ppm, and initial ozone generation is up to 0.15 mg/h.
The MHM400-01 is designed for chassis mounting and comes in a package quantity of 200 pieces per box. It is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 10.8 to 13.2 volts.
The positive ion amount is 5,000,000 pcs/cc.
The ozone density is 0.5 ppm.
The maximum input current is 100 mA.
The operating ambient temperature range is -10°C to 50°C.
Yes, it is RoHS3 compliant.
