Mfr Part #:

MHDSSK-M-9-L-K

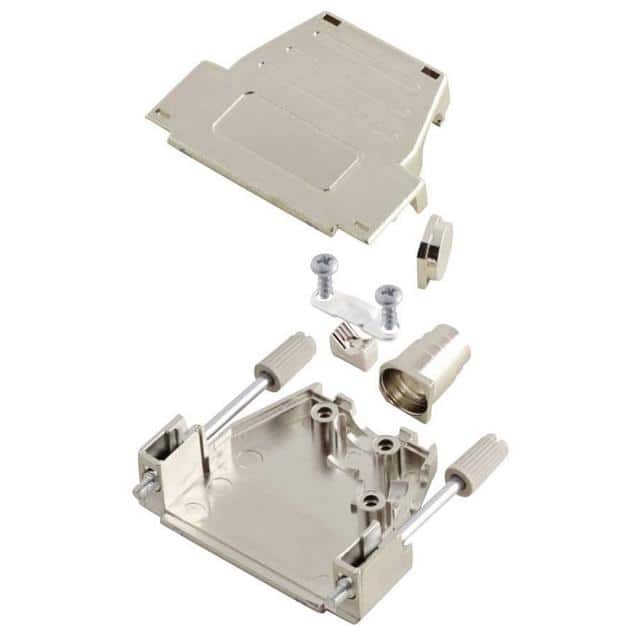

MH Connectors MHDSSK-M-9-L-K is a two-piece D-Sub backshell for 9-position connectors, featuring 45° and 180° cable exit options, nickel-plated ABS construction, and integrated shielding.

✓ Total Stock: 16 pcs

$ Price Range: $2.39 - $3.83

MHDSSK-M-9-L-K Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	16 pcs On Request	16 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MHDSSK-M-9-L-K Description

Short technical summary and product information.

The MH Connectors MHDSSK-M-9-L-K is a two-piece D-Sub backshell designed for 9-position D-Sub connectors. It is constructed from nickel-plated ABS (Acrylonitrile Butadiene Styrene) plastic, providing a durable and lightweight housing for cable termination. The backshell is shielded to help reduce electromagnetic interference (EMI).

This backshell offers both 45° and 180° cable exit angles, providing flexibility in cable routing for various enclosure and panel layouts. It includes assembly hardware, a cable clamp, and grommets to secure round cables. The hardware features 4-40 mating screws for reliable attachment to the connector.

The silver-colored backshell is suitable for applications requiring a robust and shielded cable entry solution. It is designed for use with standard 9-position D-Sub connectors and round cables.

MHDSSK-M-9-L-K Quick Information

Product Type: D-Sub Backshell

Canonical Name: MH Connectors MHDSSK-M-9-L-K D-Sub Backshell, 9 Position, Shielded, 45°/180° Cable Exit

Subcategory: D-Sub, D-Shaped Connector Backshells, Hoods

MHDSSK-M-9-L-K Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MHDSSK-M-9-L-K Estimated Pricing

Qty	Low	High
1+	$3.83	$3.83
10+	$3.66	$3.66
100+	$3.10	$3.10
300+	$2.93	$2.93
500+	$2.78	$2.78
1,000+	$2.53	$2.53
2,500+	$2.45	$2.45
5,000+	$2.39	$2.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

MHDSSK-M-9-L-K Features

Two-piece D-Sub backshell for 9 positions.
Shielded construction for EMI protection.
Offers 45° and 180° cable exit angles.
Nickel-plated ABS plastic material.
Includes 4-40 mating screws and cable clamp.

MHDSSK-M-9-L-K Applications

Used with 9-position D-Sub connectors.
Suitable for shielded cable assemblies.
Ideal for industrial control interfaces.
Common in data communication equipment.

MHDSSK-M-9-L-K FAQs

7 frequently asked questions generated from this part’s specifications.

What is the accessory type of the MHDSSK-M-9-L-K?

It is a two-piece backshell.

How many positions does this backshell support?

It supports 9 positions.

What cable exit angles are available?

The backshell offers 45° and 180° cable exit angles.

Is the backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

It is made of nickel-plated ABS (Acrylonitrile Butadiene Styrene).

What hardware is included with the backshell?

It includes assembly hardware, a cable clamp, and grommets.

What type of cable is this backshell designed for?

It is designed for round cable.

Category	D-Sub, D-Shaped Connector Backshells, Hoods
Manufacturer Name	MH Connectors
Accessory Type	Two Piece Backshell
Cable Exit	45°, 180°
Cable Type	Round
Color	Silver
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Cable Clamp, Grommets
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	9
Plating	Nickel
Primary Material	Plastic
Shielding	Shielded
Tape & Reel	No
