| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
87,433 pcs
|
87433 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Core Processor | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Utilized IC | |
| Voltage |

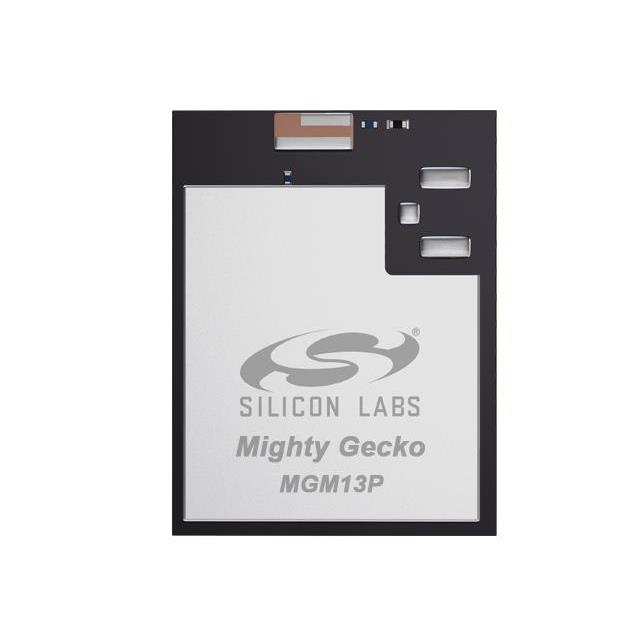

The Silicon Labs MGM13P12F512GA-V2R is a versatile RF Transceiver Module based on the EFR32MG13 Mighty Gecko SoC. It provides multi-protocol networking capabilities, supporting Bluetooth 5.0 LE, Thread, and Zigbee.
Key electrical specifications include a frequency range of 2.4GHz, TX power up to +19 dBm, and an RX sensitivity of -102.1 dBm at 1 Mbps. The module is equipped with a 38.4 MHz ARM Cortex-M4 core, 512kB of flash memory, and 64kB of RAM. It operates within a voltage range of 1.8V to 3.8V and consumes approximately 11mA of current.
Designed for a wide array of IoT applications, this module facilitates the addition of wireless connectivity to devices such as gateways, connected home products, lighting systems, metering devices, and building automation systems. It features integrated trace antenna and supports various serial interfaces including GPIO, I²C, I²S, SPI, and UART.
The module is housed in a 31-SMD Module package and is designed for surface mount installation. It operates reliably within a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The module supports Zigbee, Thread, Bluetooth 5.0 LE, and multi-protocol connectivity.
The module offers a maximum TX power of +19 dBm.
The RX sensitivity for Bluetooth at 1 Mbps is -94.6 dBm.
The RX sensitivity for 802.15.4 is -102.1 dBm.
The module operates within a voltage range of 1.8V to 3.8V.
It features 512kB of flash program memory and 64kB of RAM.
The operating temperature range is -40°C to 85°C.
