Mfr Part #:

MGDS-10-J-B

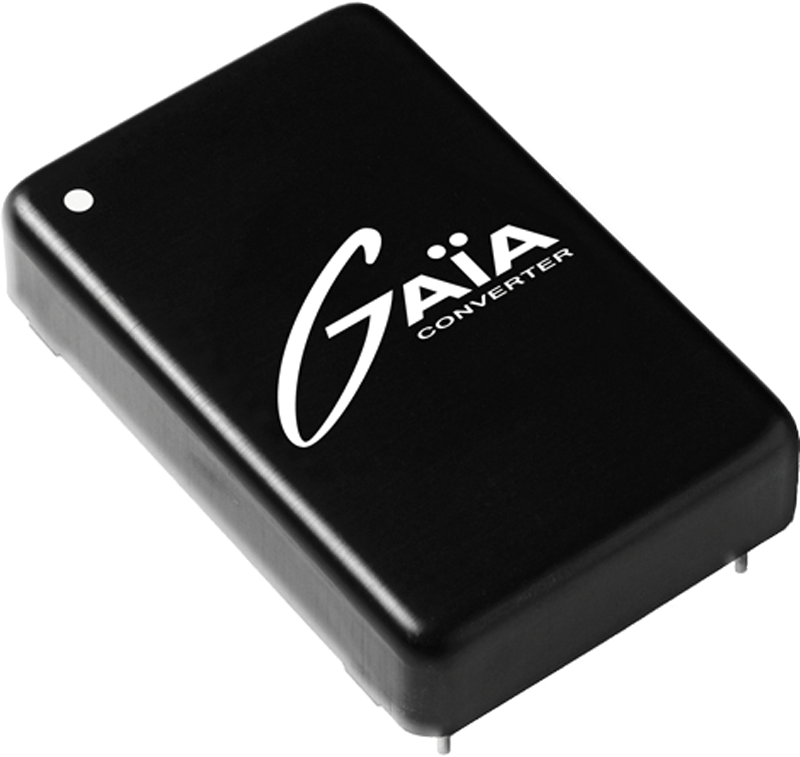

The Gaia Converter MGDS-10-J-B is a 10W DC DC converter designed for high-reliability applications. It features a wide input voltage range and a broad operating temperature range.

✓ Total Stock: 10 pcs

MGDS-10-J-B Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

MGDS-10-J-B Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Gaia Converter
Efficiency	Up to 83%
Input Voltage	28 VDC
Output Power	10 W
Output Voltage	+/-24 VDC
Package / Case	Low Profile
SVHC Present	Not Present

View Similar Products (0)

MGDS-10-J-B Description

Short technical summary and product information.

The Gaia Converter MGDS-10-J-B is a high-reliability DC DC converter from the MGDM-10 series, delivering 10W of nominal power without derating. It is designed for demanding aerospace, military, and high-end industrial applications.

This converter operates with an input voltage range of 9-36 VDC and offers a nominal output voltage of +/-24 VDC. It features a switching frequency of 480 KHz and provides 1500 VDC galvanic isolation. Key electrical protections include permanent short circuit protection and an integrated LC EMI filter.

The MGDS-10-J-B operates across a wide case temperature range of -40°C to 105°C. It has a low profile, metallic case measuring 0.33 inches. The design emphasizes high reliability with no optocoupler used.

This series includes options for RoHS or Leaded processes. The converter incorporates a soft-start feature to manage inrush current and an input undervoltage lock-out for efficient module protection.

MGDS-10-J-B Quick Information

Product Type: DC DC Converter

Series: MGDM-10

Canonical Name: Gaia Converter MGDS-10-J-B DC DC Converter

MGDS-10-J-B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MGDS-10-J-B Features

10W nominal power output without derating.
Wide 9-36 VDC input voltage range.
Operates from -40°C to 105°C case temperature.
Permanent short circuit protection included.
Low profile 0.33" metallic case.

MGDS-10-J-B Applications

Ideal for aerospace applications.
Suitable for military systems.
Designed for high-end industrial use.
Provides reliable power conversion.
Minimizes input current ripple.

MGDS-10-J-B FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the MGDS-10-J-B?

The input voltage range is 9 to 36 VDC.

What is the output power of the MGDS-10-J-B?

The nominal output power is 10 W without derating.

What is the efficiency of the MGDS-10-J-B?

Efficiency is up to 83%.

What is the isolation voltage of the MGDS-10-J-B?

The isolation voltage is 1500 VDC.

What is the operating case temperature range?

The operating case temperature range is -40°C to 105°C.

What is the package type and height?

The package is a low-profile metallic case with a height of 0.33 inches.

Does the MGDS-10-J-B have short circuit protection?

Yes, it has permanent short circuit protection.
