| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,284 pcs
|
2284 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Mounting Type | |
| P1dB | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Frequency | |
| Voltage |
The Broadcom Limited MGA-412P8-TR1G is an integrated circuit RF amplifier suitable for IEEE 802.11b/g and WLAN applications. It operates within a broad frequency range of 1.7GHz to 3GHz, with a specified test frequency of 2.452GHz.
This amplifier provides a gain ranging from 23dB to 25.5dB and features a P1dB (1dB compression point) between 24dBm and 25.5dBm. It requires an operating voltage of 3V to 3.6V and consumes a current of 40mA.

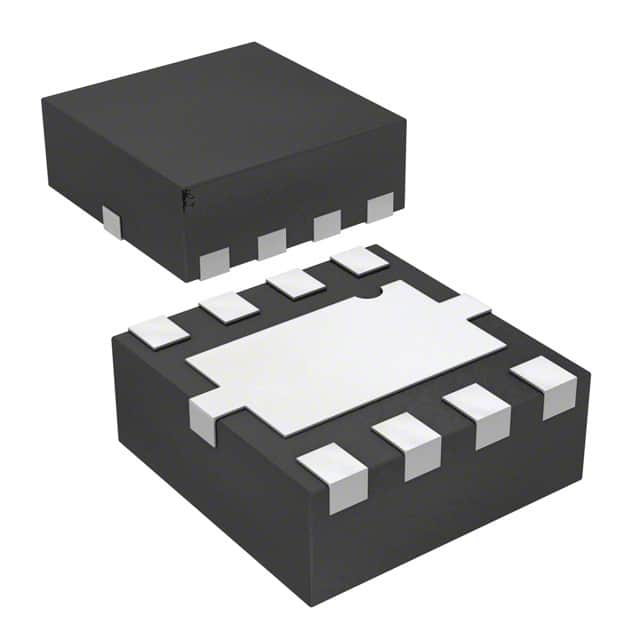

The component is available in an 8-WFDFN Exposed Pad package, with a supplier device package specified as 8-LPCC (2x2). It is designed for surface mount applications.
Compliance information indicates RoHS3 compliance, MSL 1 (unlimited) moisture sensitivity level, and REACH unaffected status. However, these compliance details are based on available database information and may require verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the MGA-412P8-TR1G is between 3V and 3.6V.
This RF amplifier operates in the frequency range of 1.7GHz to 3GHz.
The typical gain of the MGA-412P8-TR1G is between 23dB and 25.5dB.
The MGA-412P8-TR1G is supplied in an 8-WFDFN Exposed Pad package, with a supplier device package of 8-LPCC (2x2).
The MGA-412P8-TR1G is designed for surface mount applications.
