| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
282 pcs
|
282 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| Supply Current | |
| Supply Voltage | |
| Test Frequency |
The MGA-30216-BLKG from Broadcom Limited is an RF amplifier suitable for applications requiring signal amplification within the 1.7 GHz to 2.7 GHz frequency range. This component offers a typical gain of 14.2 dB and a low noise figure of 2.8 dB, making it effective for sensitive RF front-end designs.
It operates with a typical supply voltage of 5V and draws a supply current of 400mA. The device is housed in a 16-QFN (3x3) package and is designed for surface mounting, facilitating integration into compact electronic systems. The P1dB is rated at 29 dBm, indicating its power handling capabilities.
This RF amplifier is part of Broadcom Limited's extensive range of RF components. Its specifications make it suitable for various wireless communication systems and other RF applications where reliable amplification is crucial.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical supply voltage is 5 V.

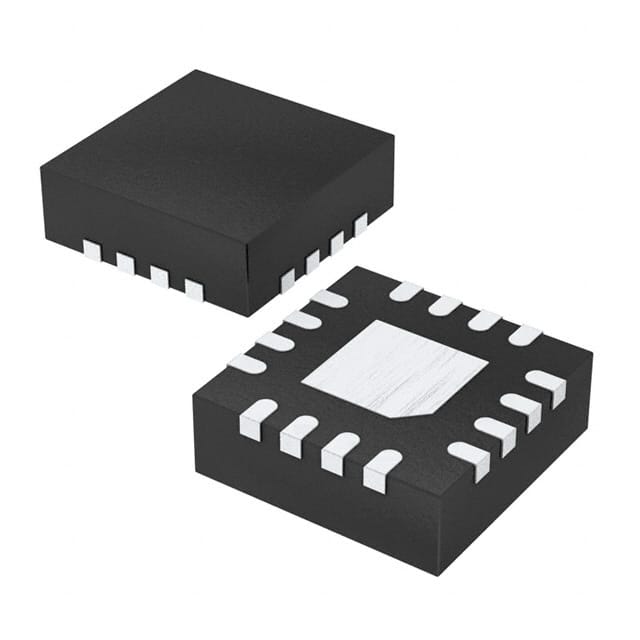

It comes in a 16-pin QFN package measuring 3x3 mm with an exposed pad.
It operates from 1.7 GHz to 2.7 GHz.
Typical gain is 14.2 dB.
Typical noise figure is 2.8 dB.
Typical P1dB is 29 dBm.
The typical supply current is 400 mA.
