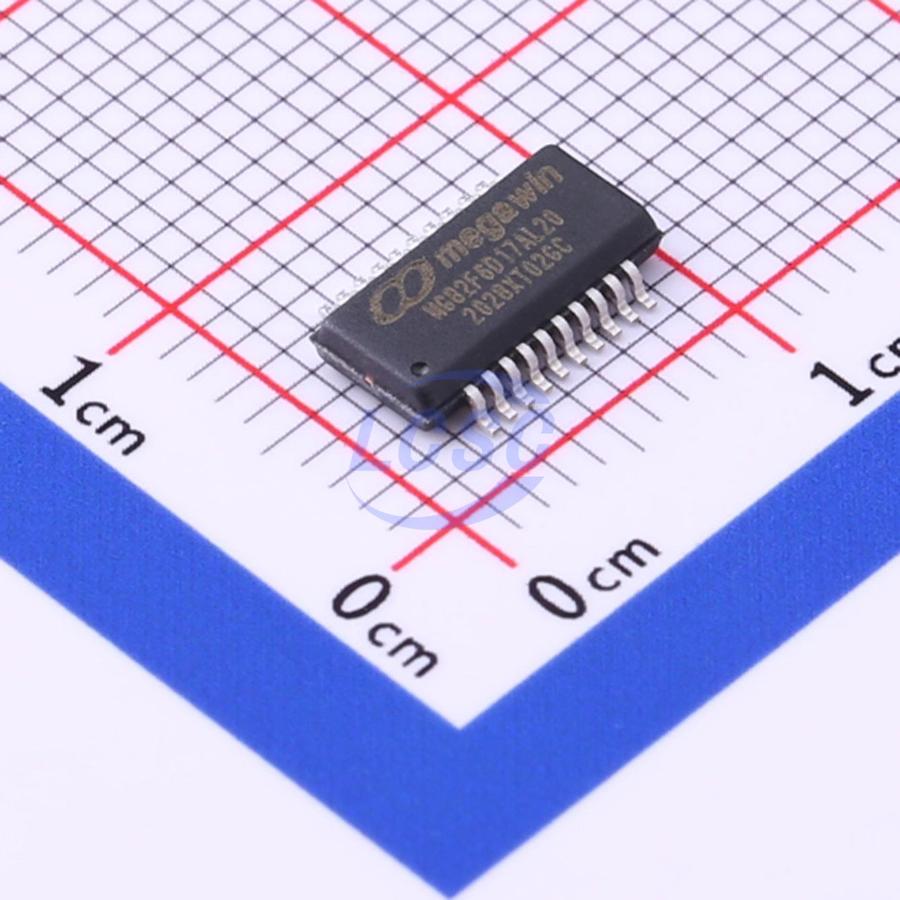

The MG82F6D17AL20 is a powerful 8051-based microcontroller designed by MEGAWIN. It features 16KB of flash memory with a write/erase cycle of 20,000 and data retention of 100 years at 25°C. The device includes 1KB of data RAM, comprising 256 bytes of on-chip scratch-pad RAM and 768 bytes of expanded RAM (XRAM).
This microcontroller is equipped with a 12-bit single-ended ADC with a programmable throughput of up to 800 KSPS and 8 external input channels. It offers a comprehensive timer system, including RTC, WDT, Timers 0-3, and PCA0 with 8 compare/PWM modules. The PCA0 supports variable 8/10/12/16-bit PWM modes and operates with a clock source up to 144 MHz.
Connectivity options include enhanced UART (S0) with a maximum baud rate of 3.6864 MHz and SPI Master support up to 12 MHz. The MG82F6D17AL20 also features a DMA engine and a 16-source interrupt controller with four-level priority. It is suitable for a wide range of embedded applications requiring robust processing and peripheral capabilities.
80C51.
16 KB.
Yes, a 12-bit ADC with up to 800 KSPS throughput and 8 external channels.
Up to 144 MHz from on-chip clock multiplier.
Two UART interfaces with maximum baud rates of 3.6864 MHz and 1.8432 MHz respectively.
100 years at 25°C with 20,000 write/erase cycles.
16 sources with four-level priority.
