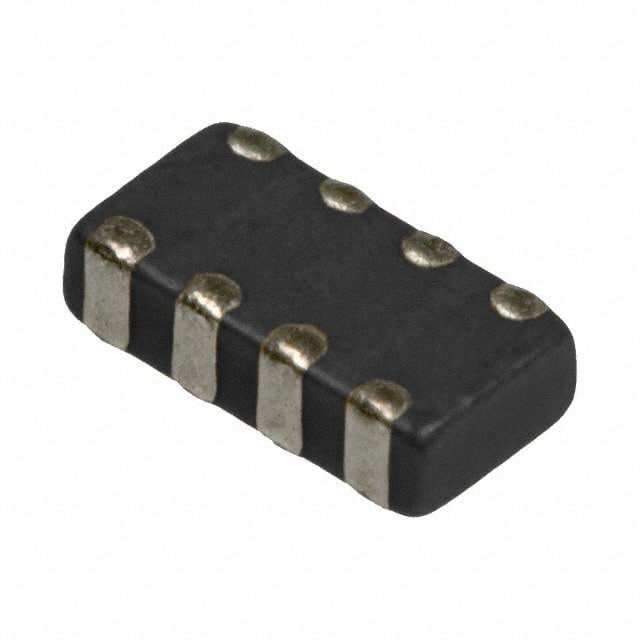

The Kyocera AVX MG064S09A200DP is a 4-element MultiGuard series multilayer ceramic transient voltage suppression (TVS) array. It provides bidirectional ESD protection and EMI/RFI filtering for sensitive CMOS and bipolar circuits. The device offers a very fast response time of less than 1 ns and is capable of repetitive strike protection.
Key electrical specifications include a typical varistor voltage of 12.7V at 1mA, a maximum DC working voltage of 9V, and a maximum AC working voltage of 6.4V. The clamping voltage is 22V, and the device can handle peak surge currents up to 30A with an energy rating of 0.1J. The capacitance is 550 pF typical at 1 MHz.
The MG064S09A200DP is housed in a surface mount 0612 (1632 Metric) package with a Ni/Sn plated termination finish. It operates over a temperature range of -55°C to 125°C. This component is ideal for protecting I/O lines, data ports, and other interfaces in portable electronics, cell phones, and computing devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.72 | $1.72 |
| 10+ | $1.26 | $1.26 |
| 25+ | $1.14 | $1.14 |
| 100+ | $1.02 | $1.02 |
| 250+ | $0.96 | $0.96 |
| 500+ | $0.92 | $0.92 |
| 1,000+ | $0.89 | $0.89 |
| 2,000+ | $0.87 | $0.87 |
| 3,000+ | $0.85 | $0.85 |
| 5,000+ | $0.84 | $0.84 |
| 7,000+ | $0.83 | $0.83 |
| 10,000+ | $0.82 | $0.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical varistor voltage is 12.7V at 1mA, with a minimum of 10.8V and a maximum of 14.61V.
The peak surge current rating is 30A per element.
The clamping voltage is 22V.
The package is 0612 (1632 Metric), surface mount MLCV.
The operating temperature range is -55°C to 125°C.
It contains 4 circuits (4 elements).
The typical capacitance is 550 pF at 1 MHz per element.
