| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,470 pcs
|
1470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |

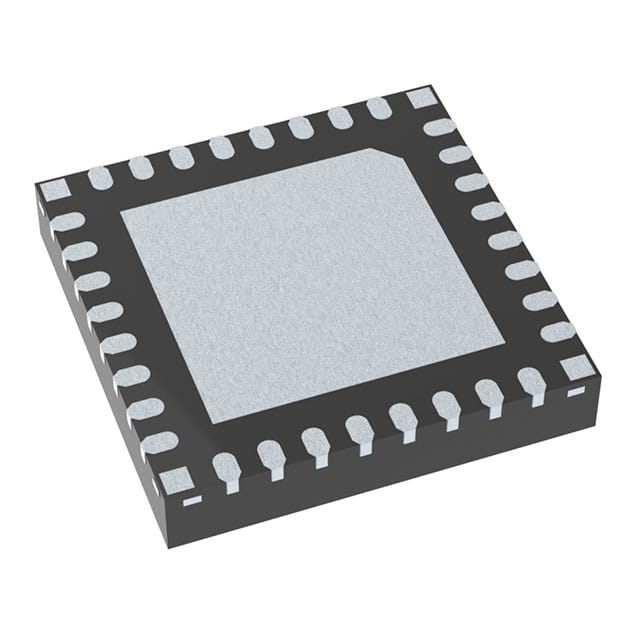

The FS5600 from NXP Semiconductors, part number MFS5600AMMA7ES, is a versatile automotive buck regulator and controller designed for demanding applications. It integrates two high-voltage buck converters: one with internal FETs capable of over 3 A load capability, and another acting as a controller with external FETs supporting up to 15 A load capability.
Key features include a wide input voltage range of 2.7 V to 36 V, output voltage adjustable from 1.8 V to 8 V, and a switching frequency range of 250 kHz to 3 MHz. The device operates across an ambient temperature range of -40 °C to 125 °C and a junction temperature range of -40 °C to 150 °C.
Designed for functional safety, the FS5600 includes independent voltage monitors, a windowed watchdog timer, and built-in self-test capabilities. It is available in a 32-lead HVQFN package measuring 5 mm x 5 mm, suitable for surface mounting.
This component is AEC-Q100 Grade-1 Qualified and ideal for QM to ASIL D automotive applications such as infotainment, telematics, ADAS, and sensor fusion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7V to 36V.
32-VFQFN Exposed Pad (5x5 mm).
Ambient temperature range -40°C to 125°C, junction temperature range -40°C to 150°C.
1.8V to 8V.
Internal regulator up to 3A, external controller up to 15A.
250 kHz to 3 MHz.
Yes, it features an I2C interface for control.
