| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
145 pcs
|
145 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

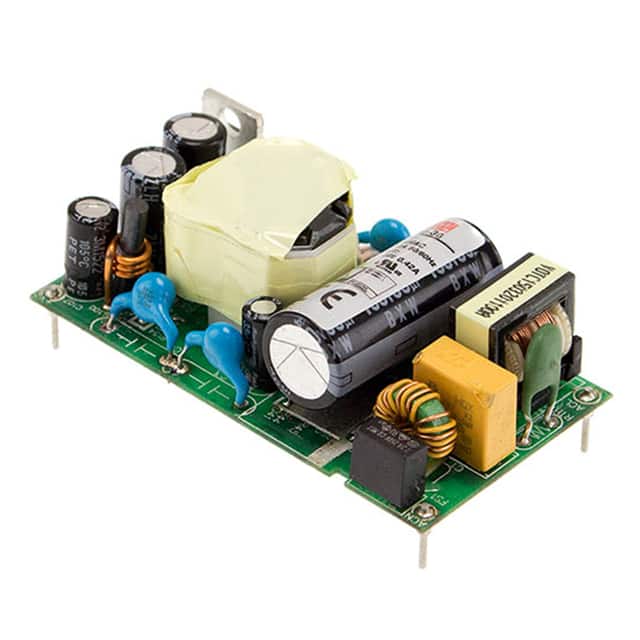

The Mean Well USA MFM-30-24 is an open frame AC DC converter designed for various applications, particularly in the medical field. It operates with a universal input voltage range of 80 to 264 VAC and delivers a power output of 31W.
This converter boasts a high efficiency of 90%, contributing to reduced energy consumption and heat generation. It features a single output and is designed for through-hole mounting, with dimensions of 65.5mm in length, 35.0mm in width, and 23.0mm in height.
The MFM-30-24 is built to withstand a wide operating temperature range from -40°C to 85°C, with derating. It has received several safety approvals, including CB, CE, cURus, and TUV, indicating its suitability for demanding environments.
Its open frame construction and compact size make it ideal for integration into systems where space is a consideration. The universal input capability simplifies global deployment.
The input voltage range is 80 to 264 VAC.
The MFM-30-24 has a power output of 31W.
The efficiency is 90%.
It can operate from -40°C to 85°C, with derating.
The dimensions are 65.5mm (L) x 35.0mm (W) x 23.0mm (H).
It is approved by CB, CE, cURus, and TUV.
It is an open frame module with through-hole mounting.
