| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Ripple | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

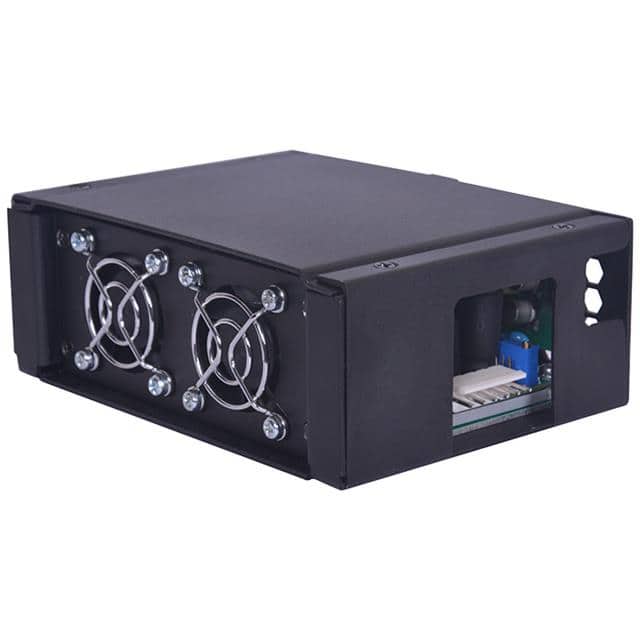

The Bel Power Solutions MFLS400-1312-TF is a medical-grade AC/DC power supply designed for forced air cooling, capable of delivering up to 400W. This enclosed unit features a 12V output voltage and a maximum load current of 25A, with a minimum load of 0A. It operates efficiently with up to 90% efficiency and offers a wide input voltage range of 85-264 VAC.
Key features include adjustable output, power factor correction (PFC), and universal input. The power supply is designed for chassis mounting and has dimensions of 123.7mm x 77.2mm x 82.3mm. It meets the standard EN60601-1 for medical applications and has an operating temperature range of -40°C to 70°C.
With high isolation ratings (4380VAC input-to-output) and a typical Mean Time Between Failure (MTBF) of 2.56 million hours, the MFLS400-1312-TF is built for reliability. It also includes over-current and over-voltage protection features.
The nominal output voltage is 12V DC.
The maximum output current is 25A.
-40°C to 70°C.
Typical efficiency is 90%.
123.7mm x 77.2mm x 82.3mm (4.87" x 3.04" x 3.24").
It is certified to IEC 60601-1 and approved by CB, CE, CSA, NEMKO, and UL.
Box-packed.
